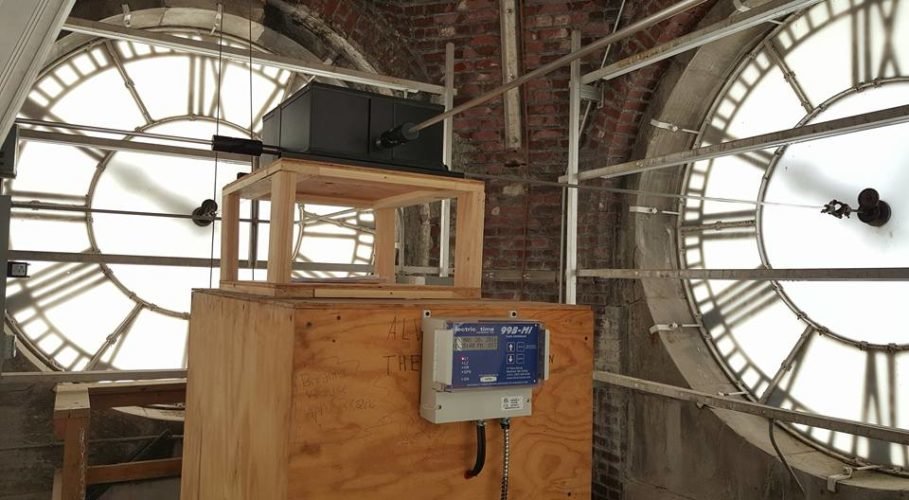

XXMI 4 Way Movement Installation Example
Tower Clock Movement Central Drive Assembly
Tower Clock Movement Central Drive Test

180″ (460 cm) and under Four Way Tower Clock Movement

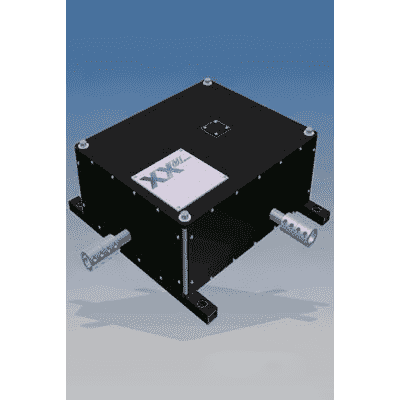

  • XXMI 4 Way Movement

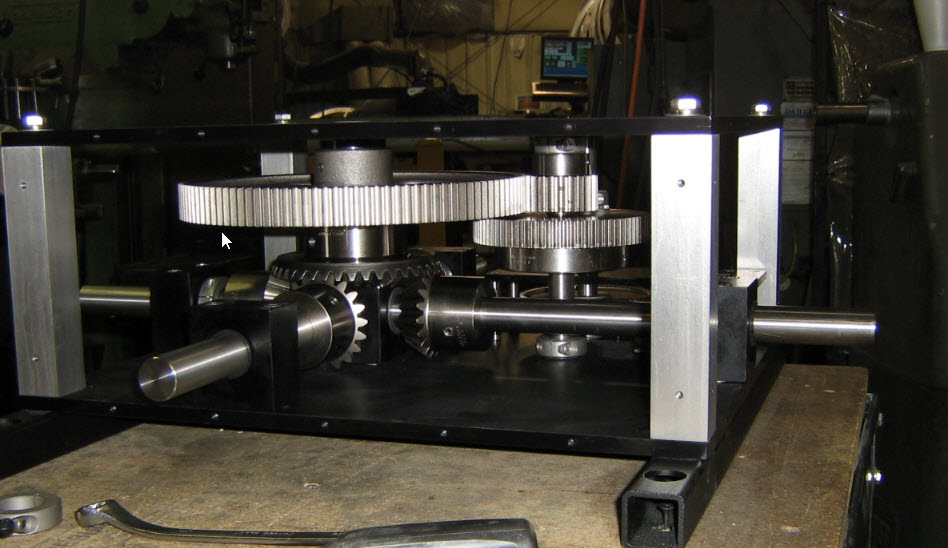

  • Central Drive Tower Clock Movement under manufacture

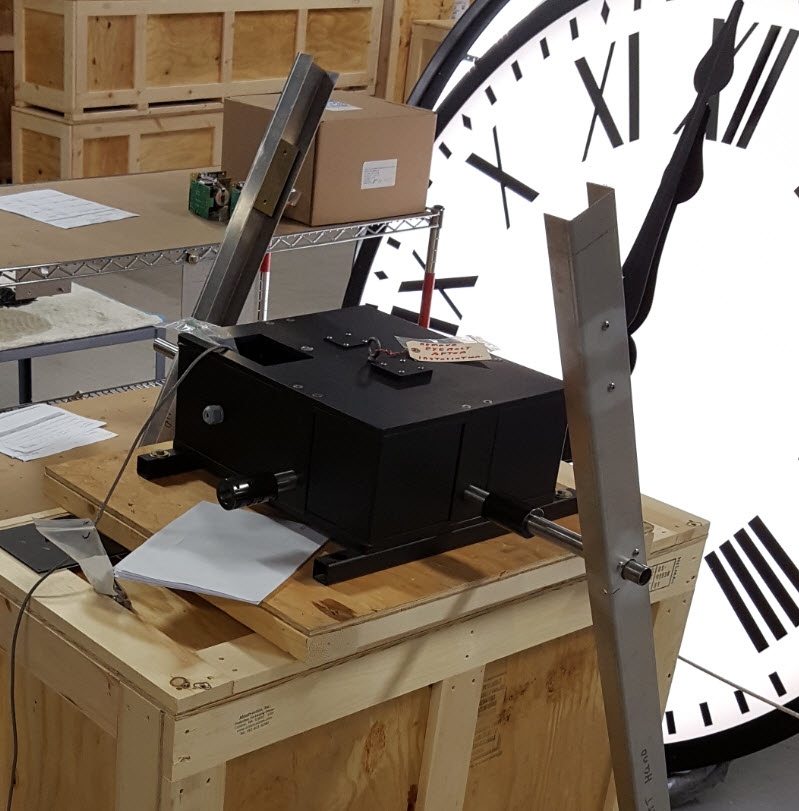

  • Central Drive Tower Clock Movement on Test
Part Number: MOVT-XXMI.
Category: .

Mechanical Specifications
The XXMI is a 4-way central tower clock movement designed to drive up to (4) dial gear assemblies from one central location. This movement features robust, reliable, and maintenance-free operation, making it an ideal choice for replacing existing central tower clock movements or providing a design alternative for new installations.

For 72″ (213cm) and below see MOVT-XMI
Up to (4 )180″ Unprotected Hands
4 way Tower Clock Movement
Contact factory for specific application
Weatherproof Aluminum Housing
Clamp Couplings on Output Shafts
1″ Output Shafts
Weight: 94 lbs (42.64 kg)



Electrical Specifications
24VAC – 50/60 HZ – 450 mA – 12W
(8 SEC/MIN RUN TIME)

99B Control required for operation.

You can find additional information on other designs on our main tower clock movement overview page.

Additional information available in the documentation tab above.
