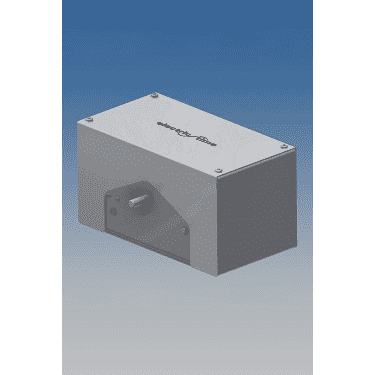

C1MI 1RPH Movement

1 RPH Output Mechanical Drive System.

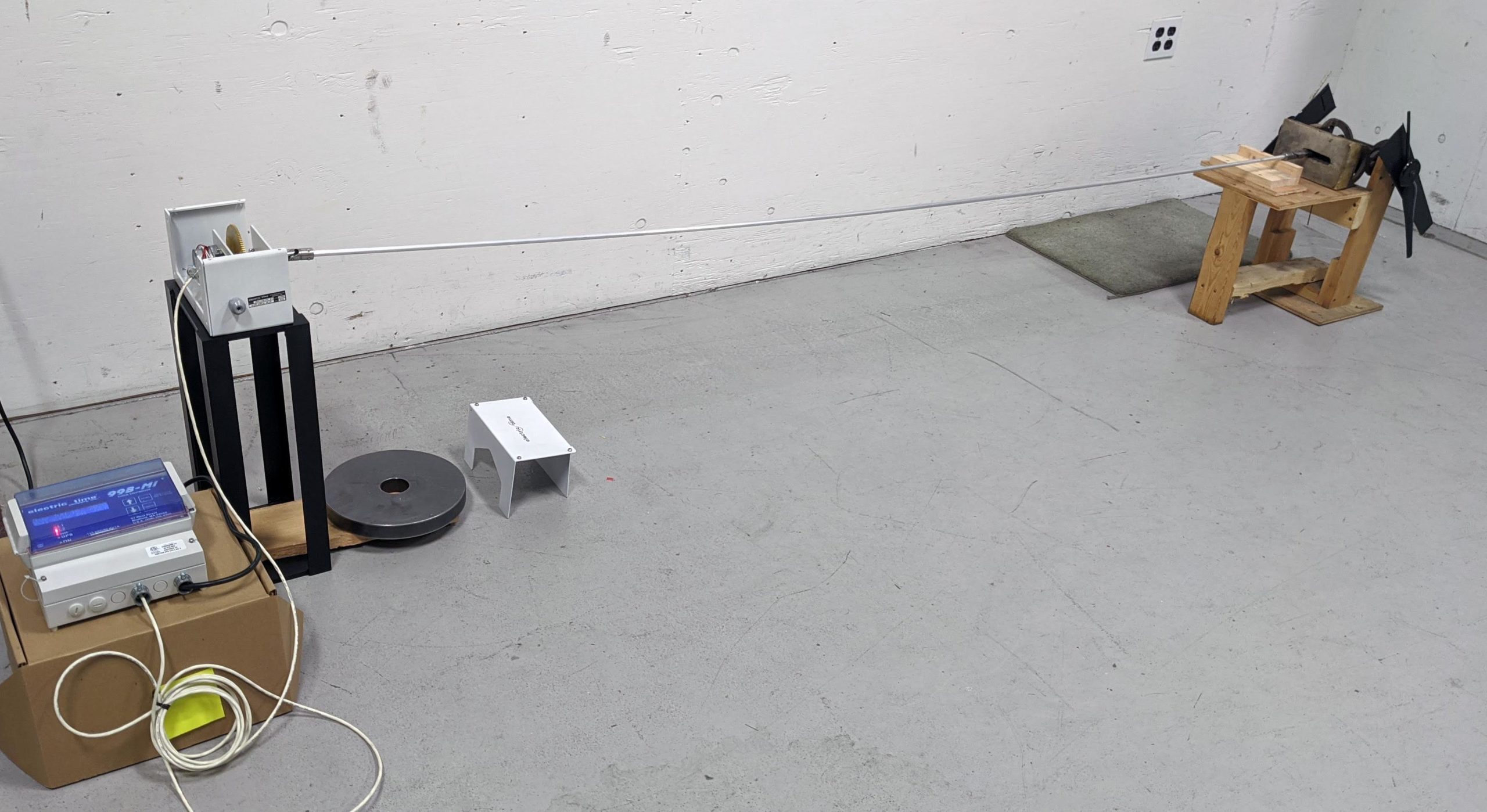

  • Tower and Street Clock 1RPH Drive Unit

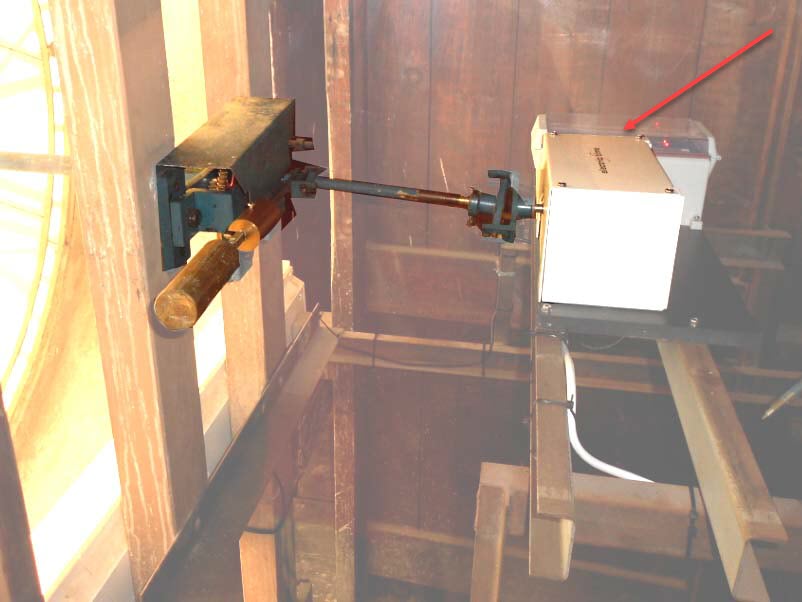

  • Tower Clock Dial Gear Assembly – Direct Drive

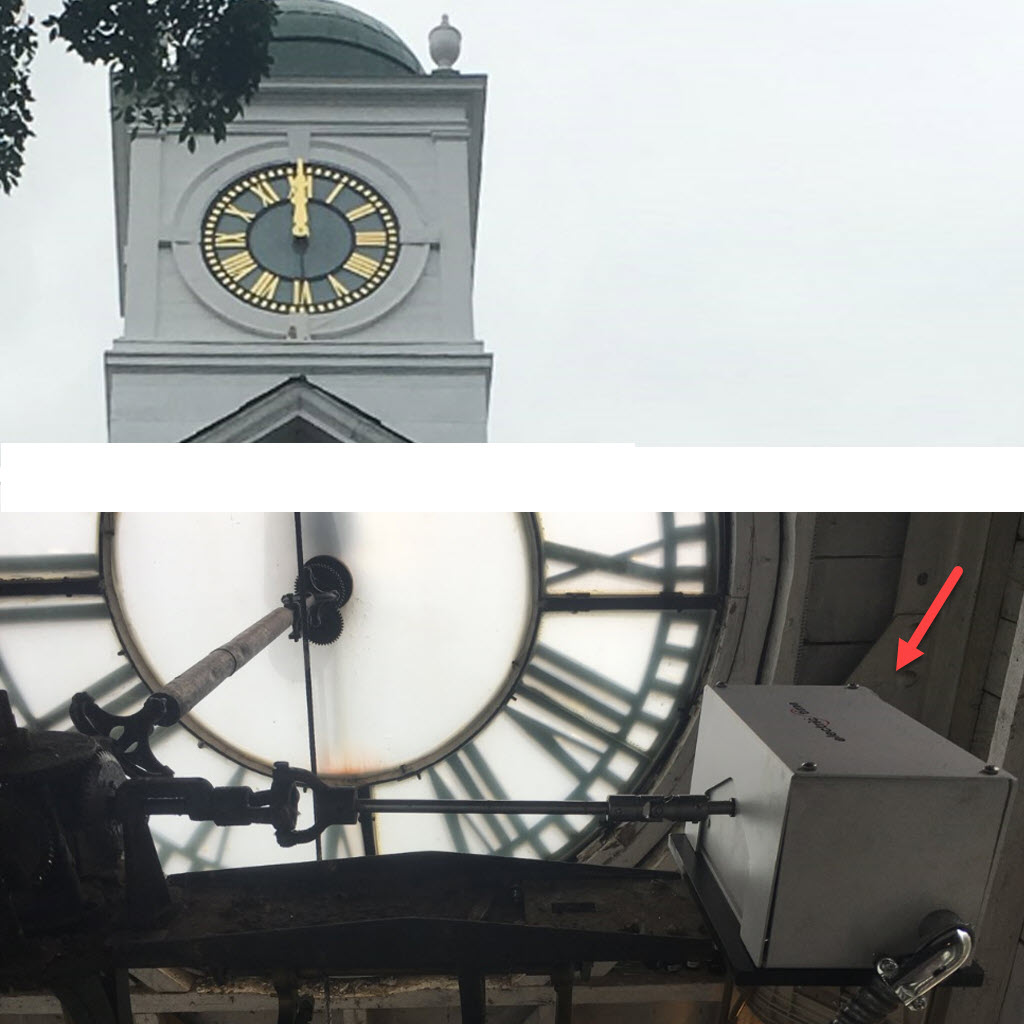

  • Tower Clock Drive Unit Installation 1 RPH
Part Number: MOVT-C1MI-DRV.
Category: .

1 RPH Output Mechanical Drive System. Used to drive existing tower clock dial gear assemblies. Shaft can be mounted vertically or horizontally. Also available in a 115/240VAC 50/60HZ versions. Replacement for Simplex 568-2 Tower Clock Movement.

Mechanical Specifications
Up to 72″ (183 cm) Dial Unprotected Hands
Available 1RPH and 1/2RPH

Contact factory for specific application

Electrical Specifications
24VAC – 50/60 HZ – 250 mA – 6W
(8 SEC/MIN RUN TIME)

99B Control required for operation

You can find additional information on other designs on our main tower clock movement overview page.
