DGA-B28 Tower Clock Dial Gear Assemblies

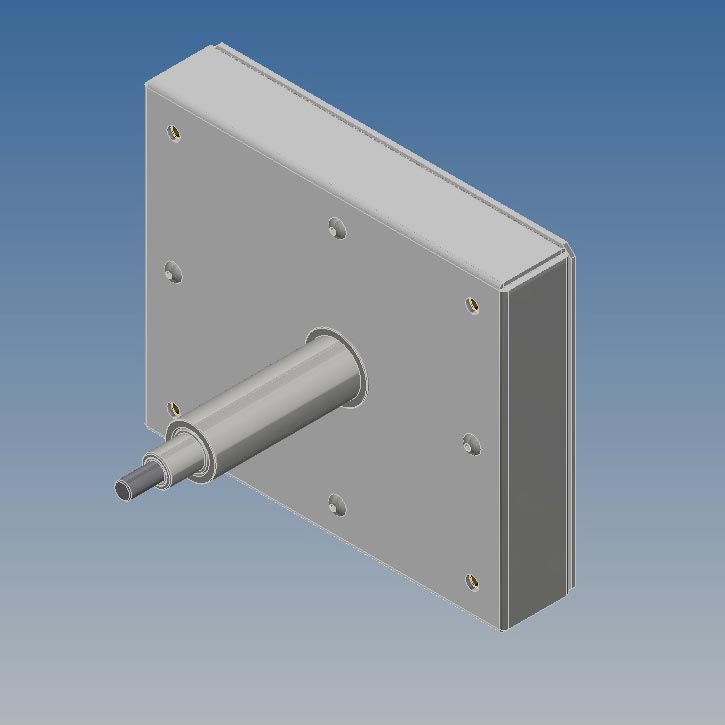

Street-Clock-Motion-Works

DGA-B28 Street and Tower Clock Motion Works Assemblies 48″ (244 cm) and under.

Product Description

Mechanical Specifications
Up to 48″ (120 CM) unprotected hands
Up to 60″(150 CM) protected hands

Compatible with our XMI 4-way tower clock movement. Can be used for replacement of existing mechanical tower & street clock dial gear assemblies. Stainless steel hour hand shaft and minute hand tube. Aluminum Case.

  • Three (3) Standard Shaft lengths.
  • Standard B28 Style Clamp Hand Hubs.
  • Accessories available: Shafting, universal joints and slide coupling.

Mounting Options shown here.

Larger Size C1 Style shown here.

Additional information available in thedocumentation tab above.
