MOVT-MI-1RPM-375

1 RPM Drive Unit

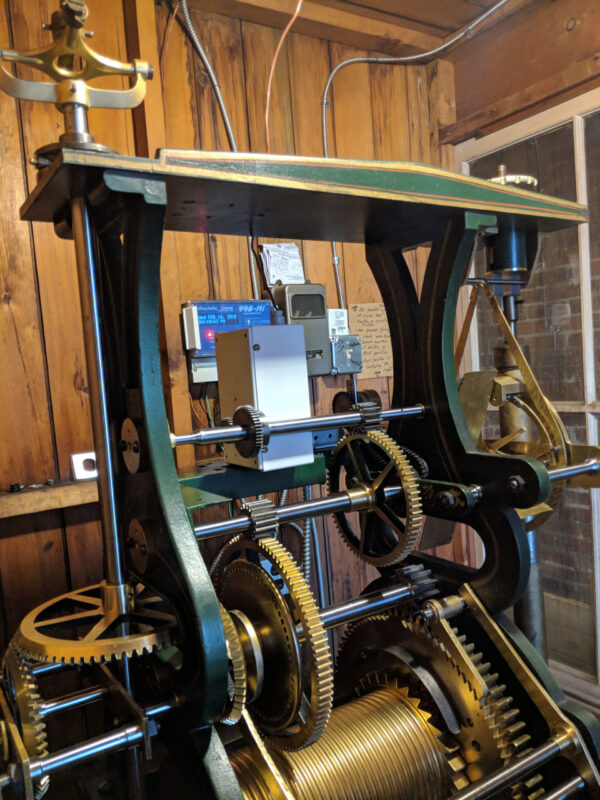

  • Bodine-Tower-Clock-Motor-Replacement

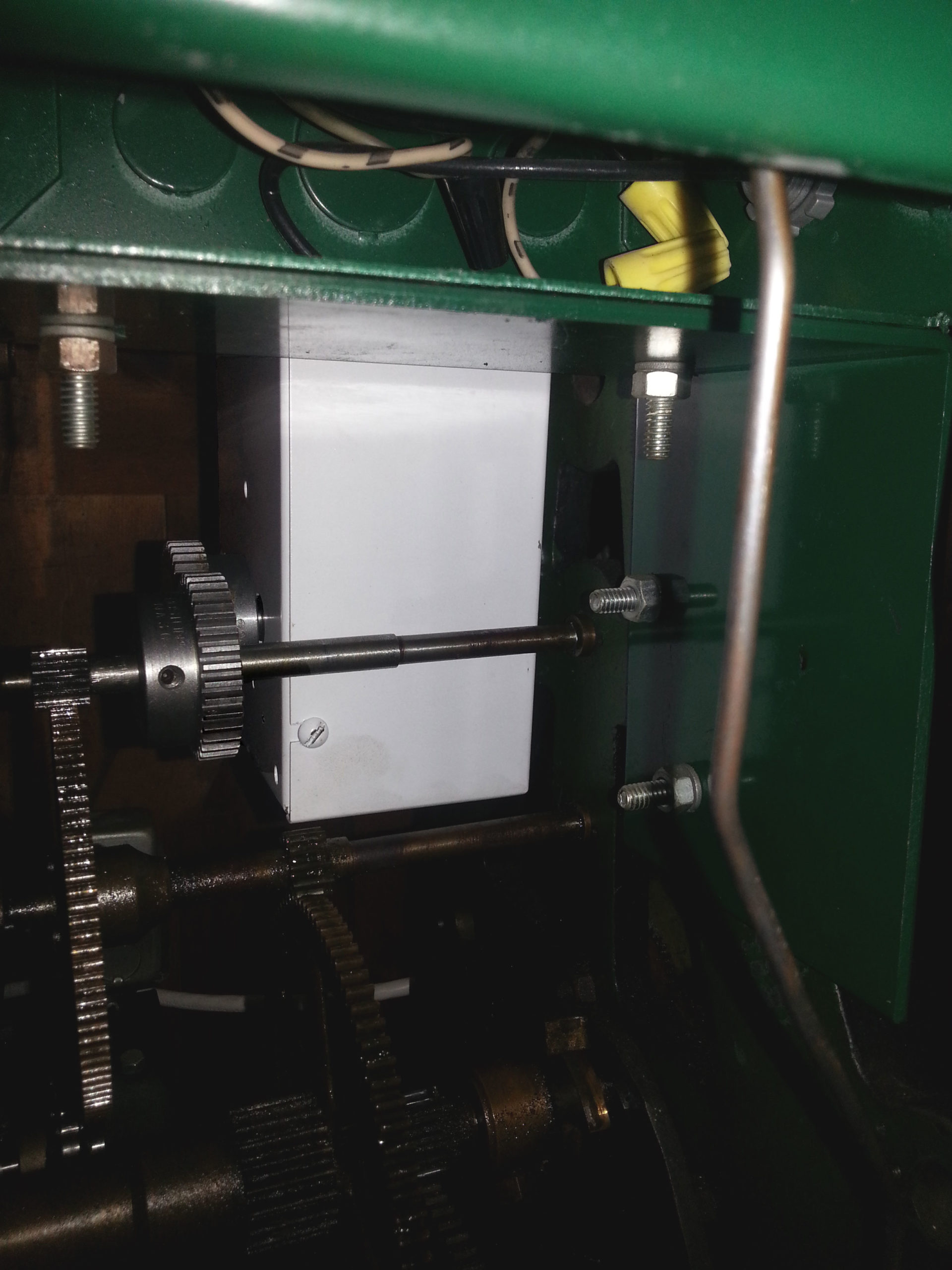

  • Tower-Clock-Motor-Installed

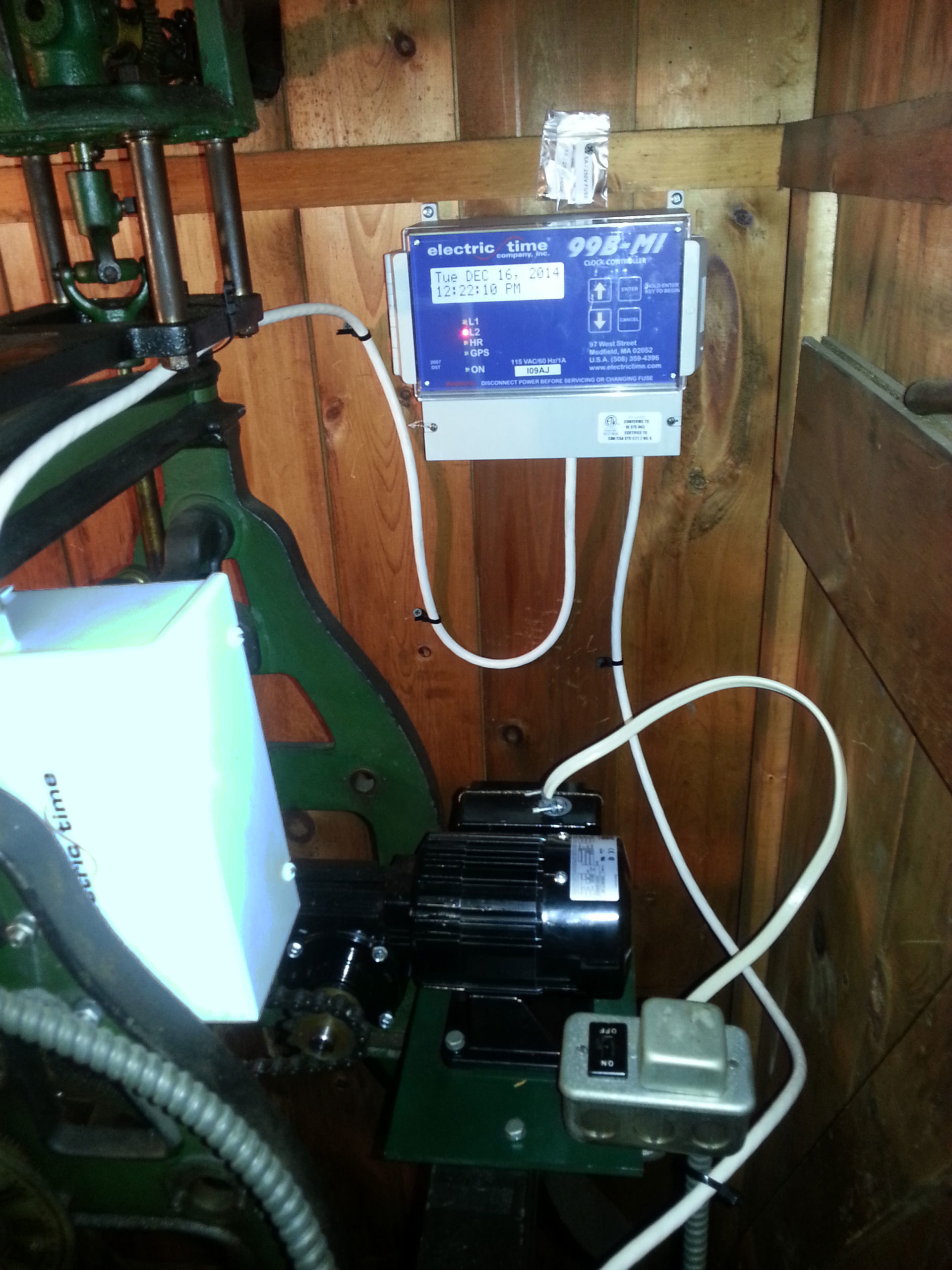

  • Tower-Clock-Motor-Installation-with-control

Description

Mechanical Specifications

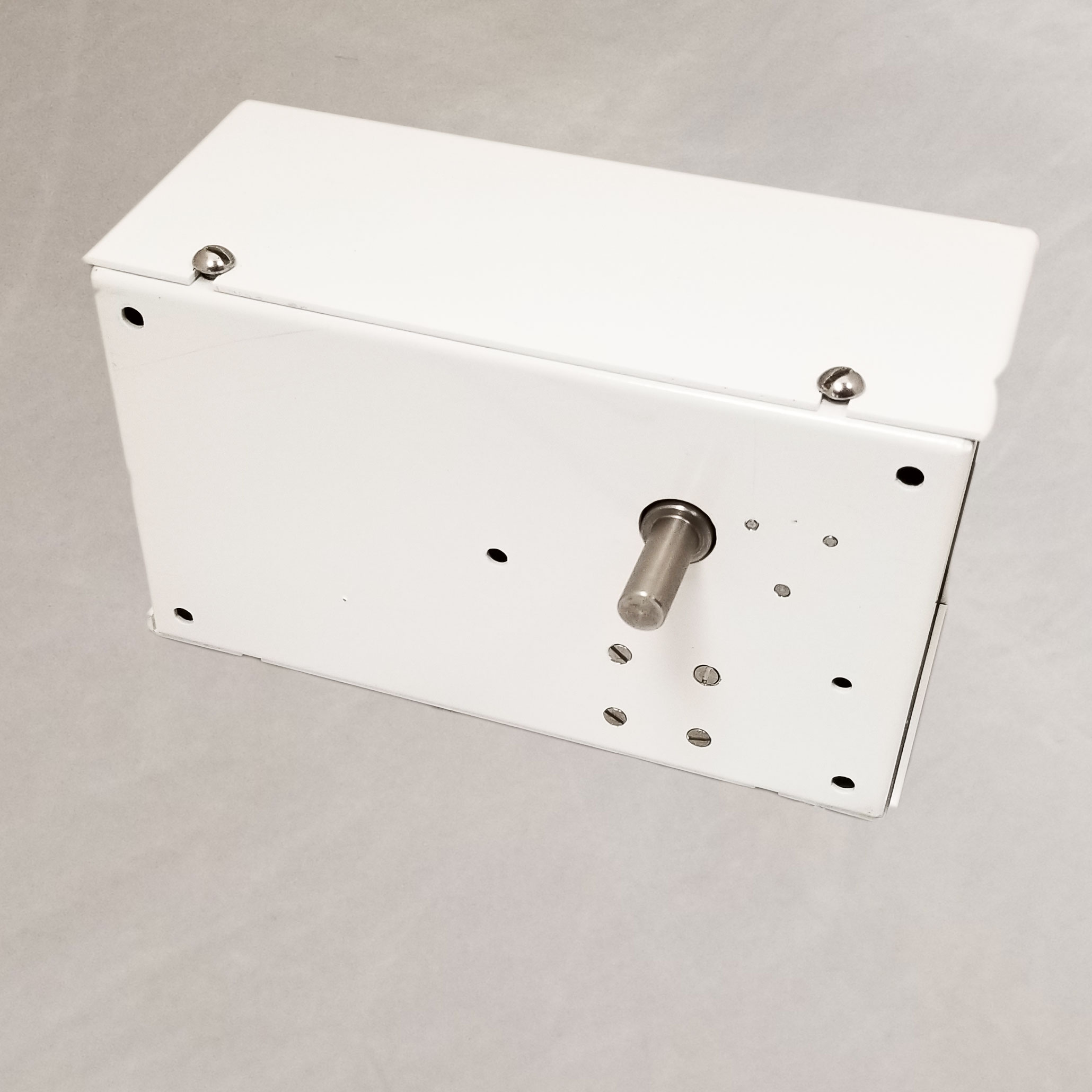

The MOVT-MI-1RPM-375  is a 1 RPM central drive unit designed  to replace Bodine or equivalent AC motors on electrified mechanical tower clocks.

1 RPM equilvalent output with a actual run time of 6 seconds
3/8″ (9.5mm) output shaft
Slower outputs also available with custom vanes.

Electrical Specifications
24VAC – 50/60 HZ – 300 mA – 7W
(6 SEC/MIN RUN TIME)

99B Control required for operation.

You can find additional information on other designs on our main tower clock movement overview page.

Additional information available in the documentation tab above.



Documentation


DS-546
