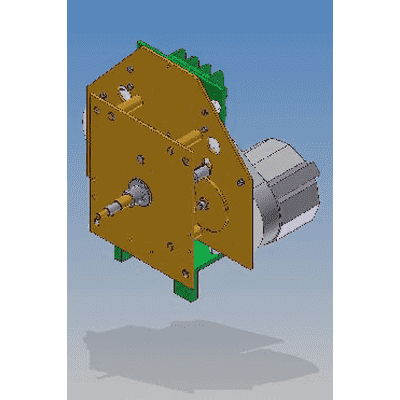

H-MISS

MECHANICAL SPECIFICATIONS
UP TO 30" [760] DIAL WITH PROTECTED HANDS
SWEEP OR STEPPING SECOND HAND OPERATION

ELECTRICAL SPECIFICATIONS
Hour and minute - 24VAC 360mA 50/60hz
Second Hand 24VAC 200mA 50/60hz & 24VDC 200mA
MI OPERATION- 8sec/min RUN TIME

Product Specifications
99B Control Required for operation

Documentation

DS-517 HMI SWEEP SECOND MINUTE IMPULSE MOVEMENT (PDF File)
