Designing Time®

MTZC – Multiple Time Zone Control

CTRL-MTZC

Multiple Time Zone Control

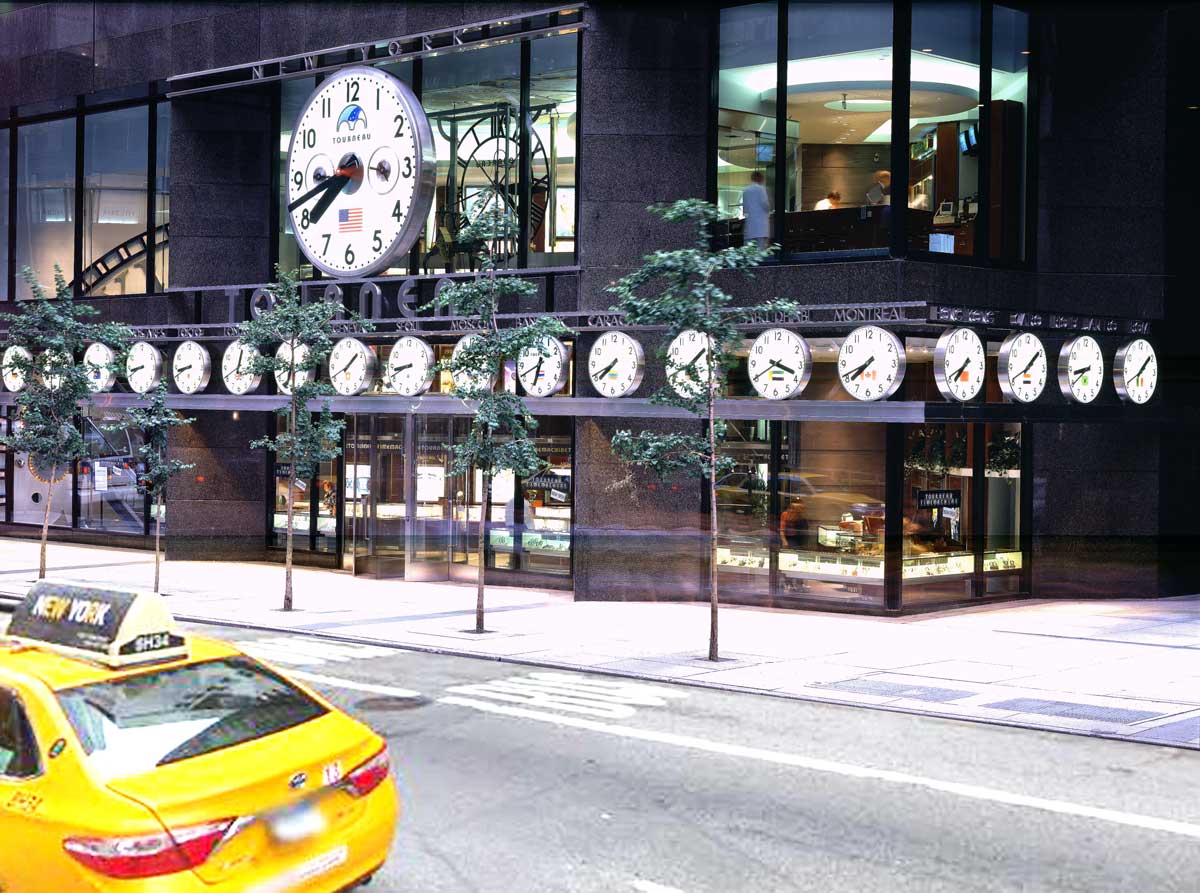

  • Tourneau Time Machine

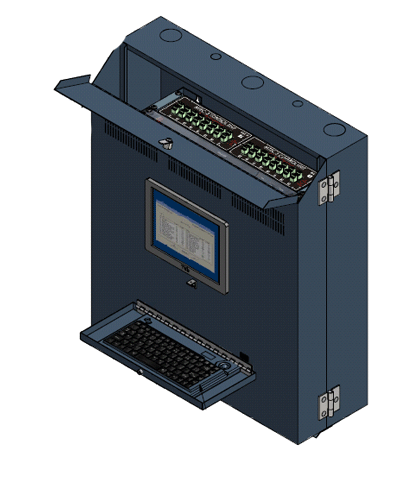

  • Rack-Mount-Tower-Clock-Clock-Control
Part Number: CTRL-MTZC3-DM-PC-8.
Category: .

Product Description

The MTZC control and software application can control up to 48 1clocks. Each clock uses between 2 and 96  digital output signals. Clocks and complications can be configured for different time zones and daylight saving rules. These signals are used to control hardware display devices such as;

  • Simple Clock

    The Simple Clock controls a clock that displays hours and minutes. By using 2 digital I/O
    channels, the MTZC program will send a signal every 6 seconds to the clock. These
    signals are typically used to advance the hands of an analog clock.

  • Day of Week Clock

    This Day of Week clock displays the days of the week on a dial. Sunday is at 12:00, with
    all the others at spaced intervals around the circle.

  • Moon Phase Clock

    This Moon Phase clock is a rotation dial that shows the current lunar position. In
    actuality, one dial rotation (360 deg.) lasts for 2 lunar cycles.

  • Date Clock

    The Date Clock uses standard clock movements. The face of the clock has two dials, the
    inner dial show the month and the outer dial shows the day of month. The minute hand of
    the clock points to the day of month and the hour hand points to the month.

  • Month Only Clock

    This Month Only clock displays the month only on a dial. January is at 12:00, with all the
    other months equally spaced around the dial.

  • Day of Month Clock

    The Day of Month clock displays the current day of month, with 31-1 at the 12:00
    position and every two tics having another date.

  • Lamp Clock for Hours and Minutes

    This lamp clock controls either 72 or 84 digital output signals. 60 signals are used to
    show the current minute and 12 or 24 signals are used to show the current hour.

  • Lamp Clock for Seconds

    This lamp clock controls 60 digital output signals used show the current second.

Standard Time Base: NTP
Optional Time Base: GPS, 99B or CDMA

1For installations of 4 displays or less use our compact CTRL-100A-MTD

Models:

CTRL-MTZC3-BASE-UNITMTZC-3 CONTROL UNIT - BASE

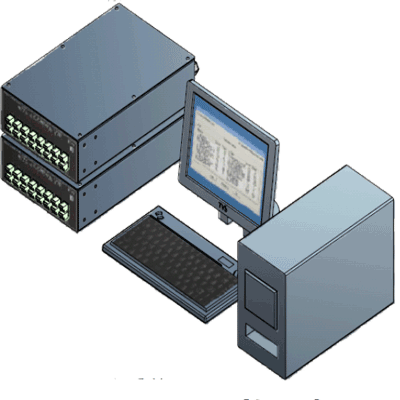

CTRL-MTZC3-DM-PC-16MTZC-3 - 16 CHNL CONTROL (DESKTOP)
CTRL-MTZC3-DM-PC-8MTZC-3 - 8 CHNL CONTROL (DESKTOP)
CTRL-MTZC3-DM-SHLF-16MTZC-3 DESKTOP W/ SHELF (16 OUTPUT)
CTRL-MTZC3-DM-SHLF-8MTZC-3 DESKTOP W/ SHELF (8 OUTPUT)
CTRL-MTZC3-RM-2U-PC-BASEMTZC-3 2RU PC CONTROL - BASE UNIT
CTRL-MTZC3-RM-PC-16MTZC-3 RACK MOUNT CONTROL - 16 CHNL
CTRL-MTZC3-RM-RELAY-8MTZC-3 RACK MOUNT RELAY (8 OUTPUT)

Additional information available in the documentation tab above.
