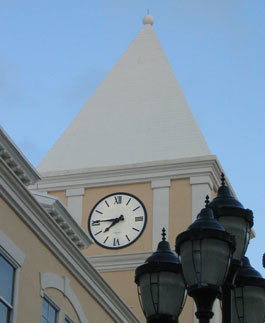

4600 Flush Backlighted

72″/183CM- 96″/244CM BACKLIGHTED

Request info.

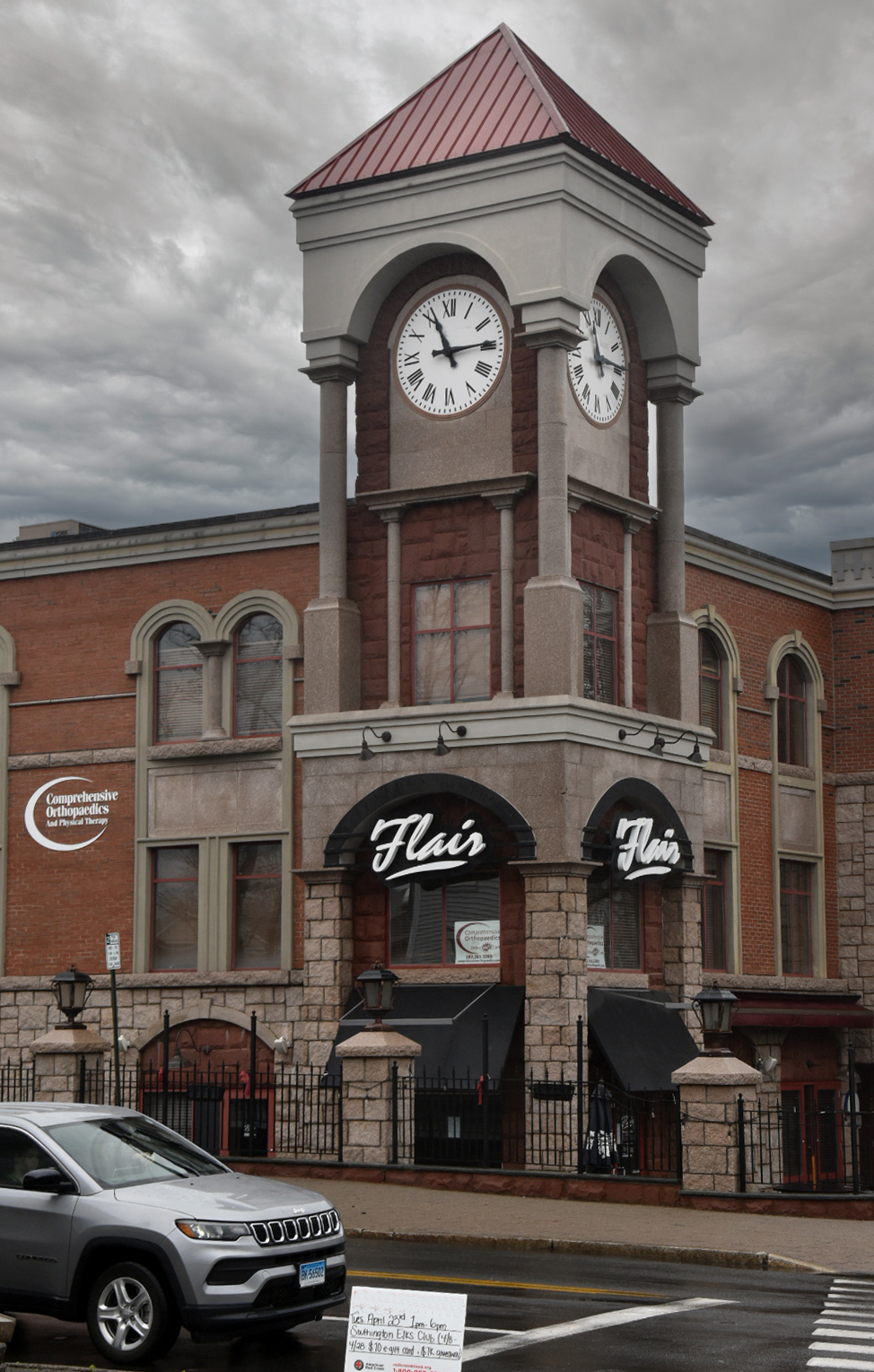

  • Tower-Clock-Flush-Illuminated

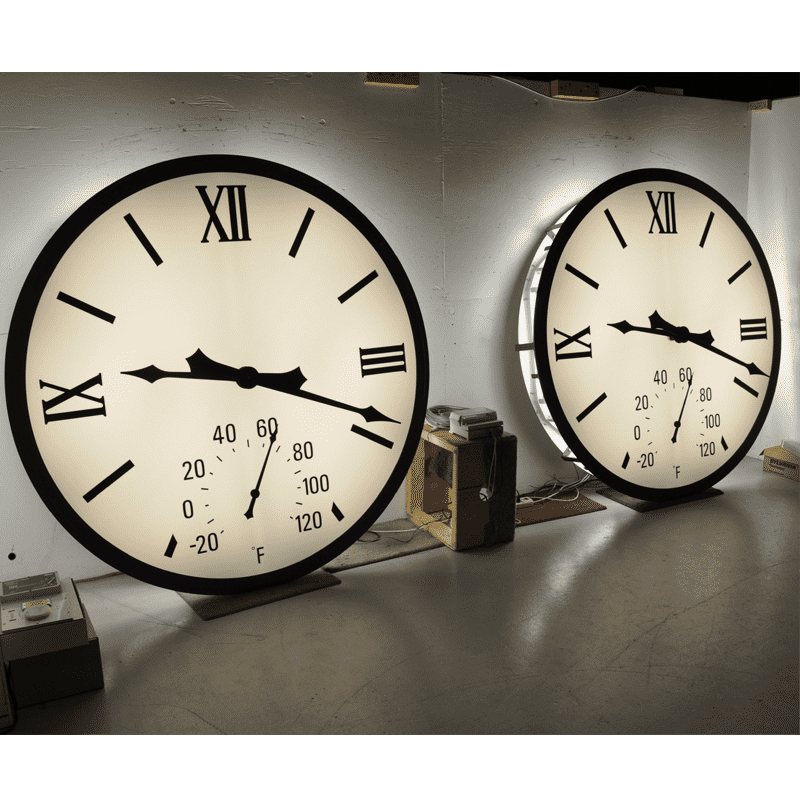

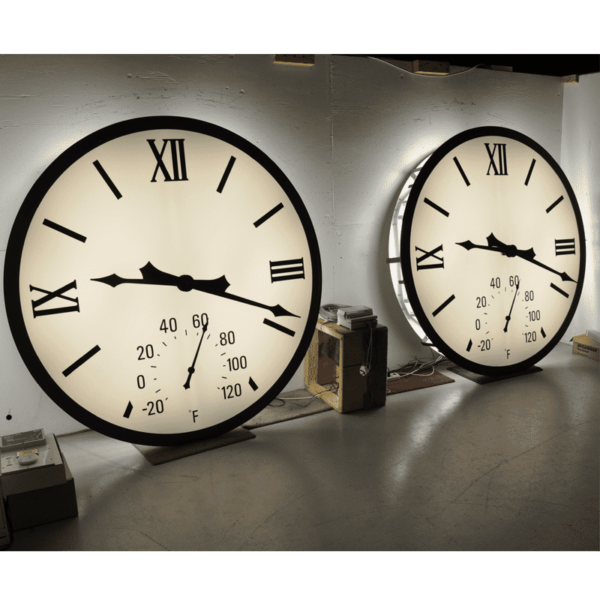

  • Sauk Prairie Chamber – Prairie du Sac, WI

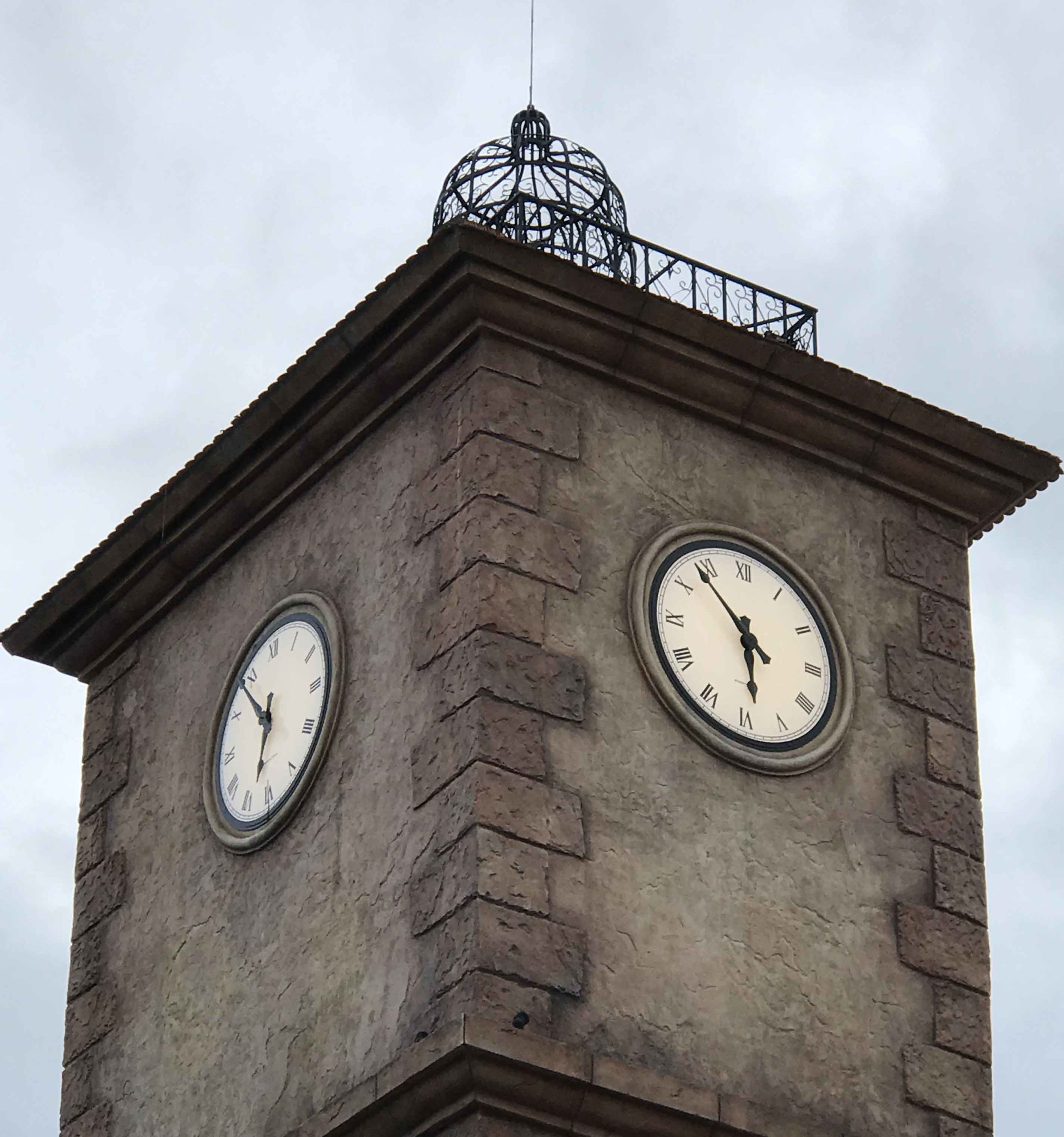

  • Flush-Tower-Clocks

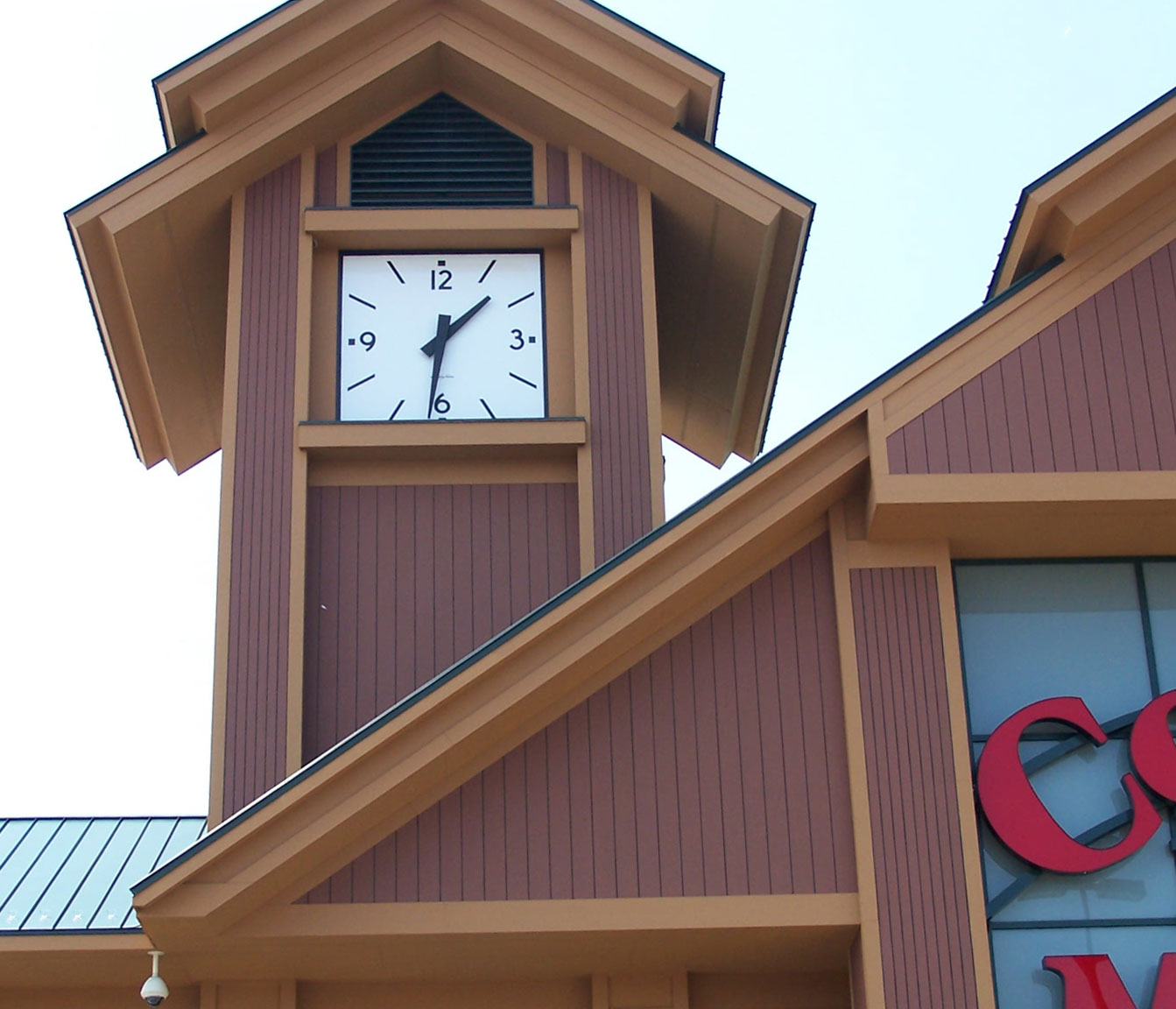

  • Backlighted-Square-Tower-Clock

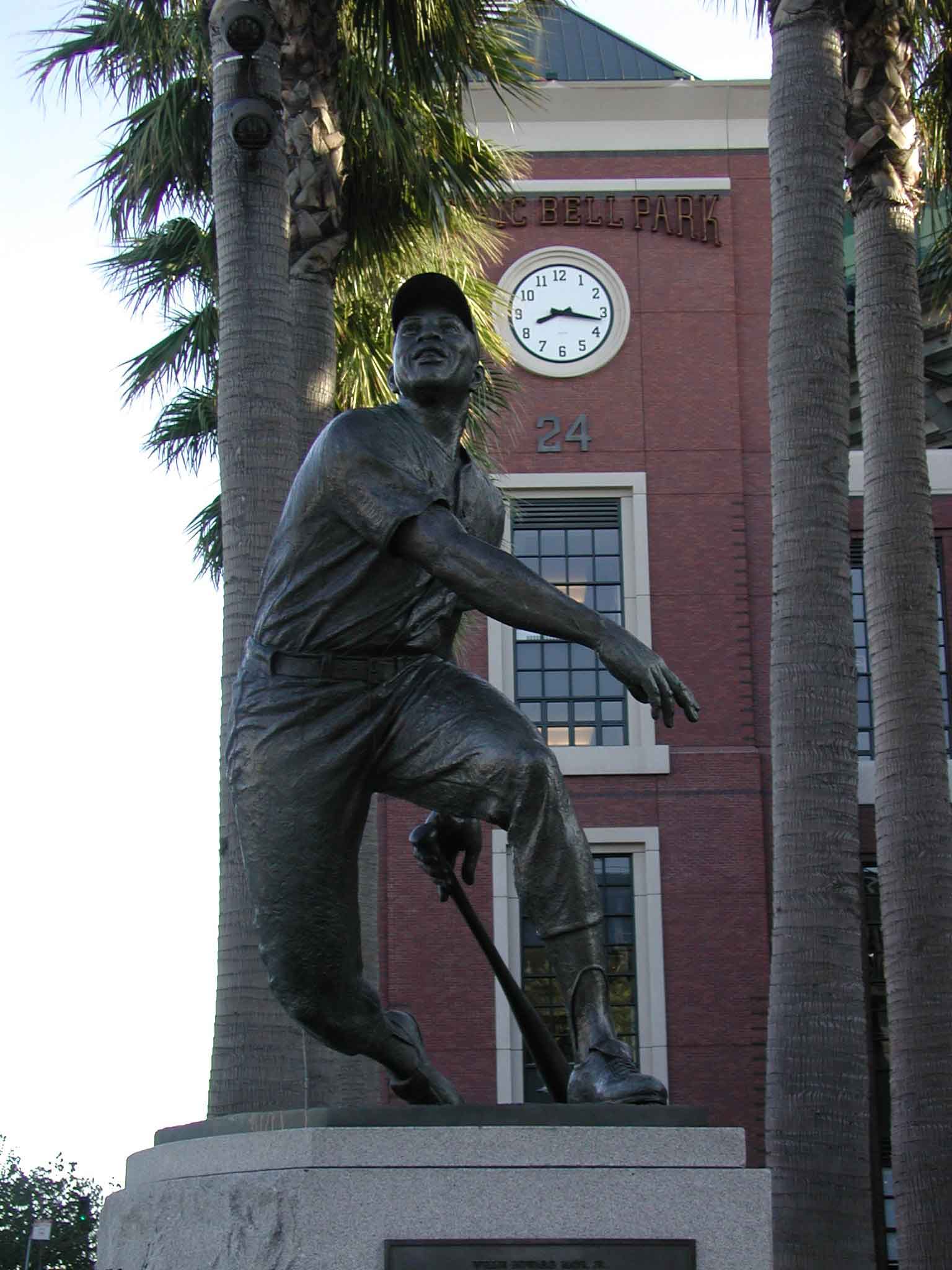

  • AT&T-Park-Tower-Clocks

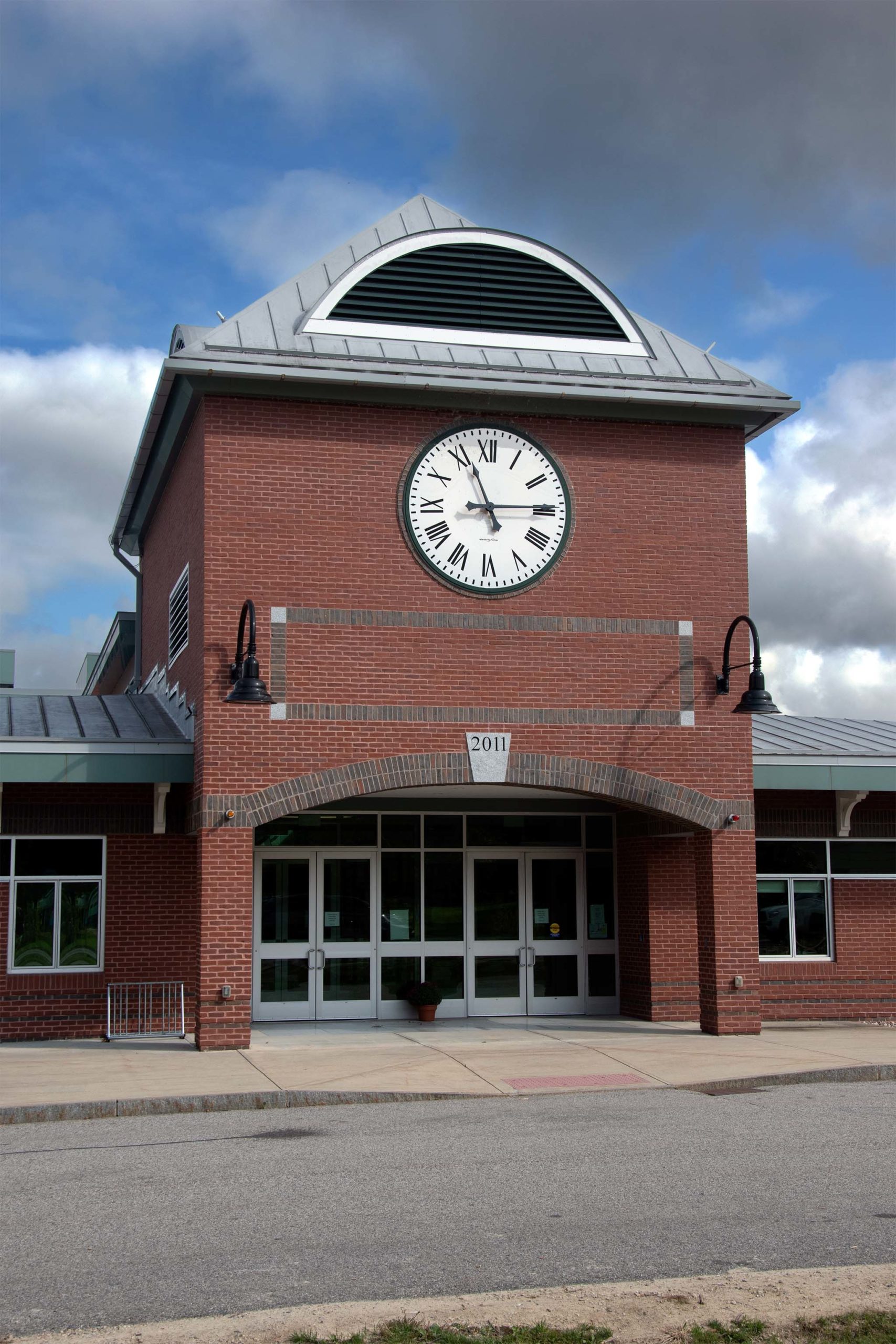

  • Kingswood School – Wolfeboro, NH

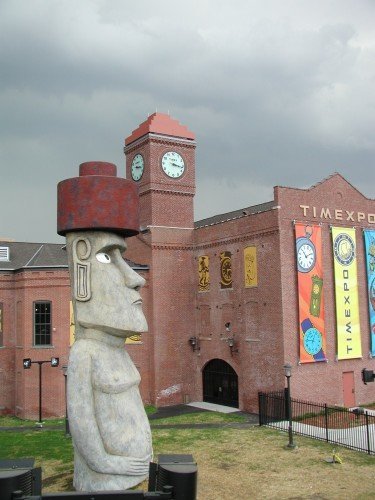

  • Timexpo – Waterbury, CT
  • Alpine Family Physicians – Lake Zurich, IL
  • Dallas Baptist University

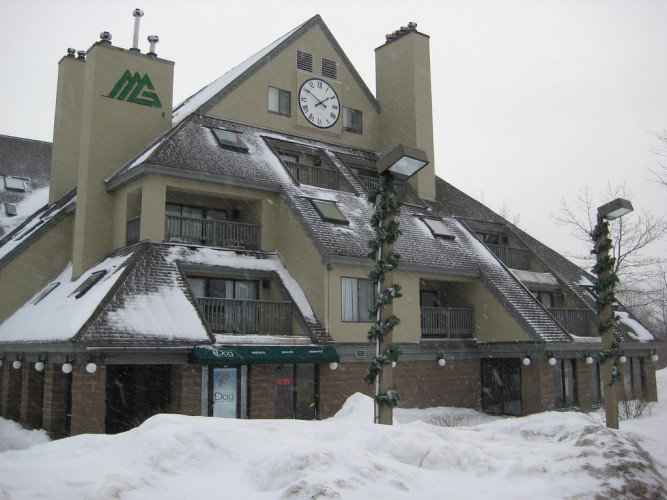

  • Mountain Green Resort – Killington, VT
  • Moody Bible – Chicago, IL
  • Towson University – Towson, MD

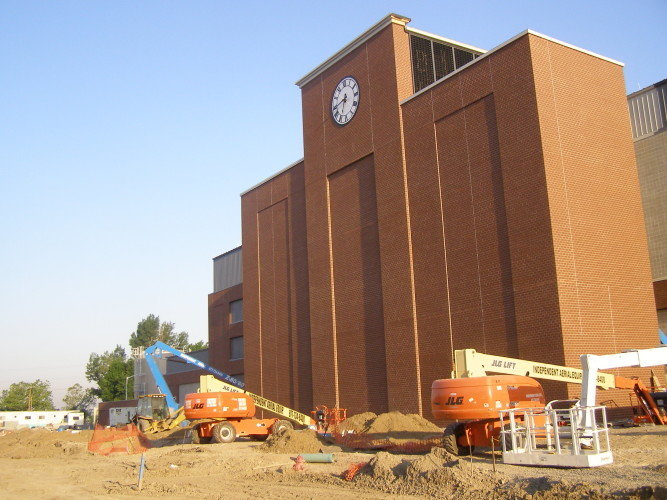

  • Neptune Power – Sayreville, NJ
  • Neptune Power – Sayreville, NJ

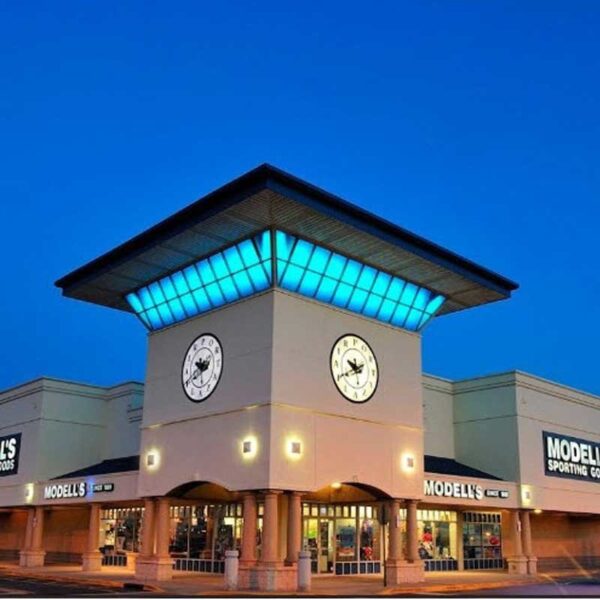

  • Airport-Plaza

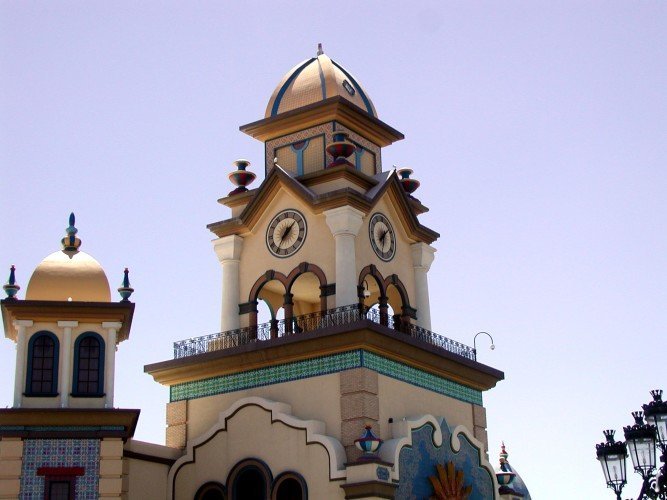

  • Sunset Station – Las Vegas, NV

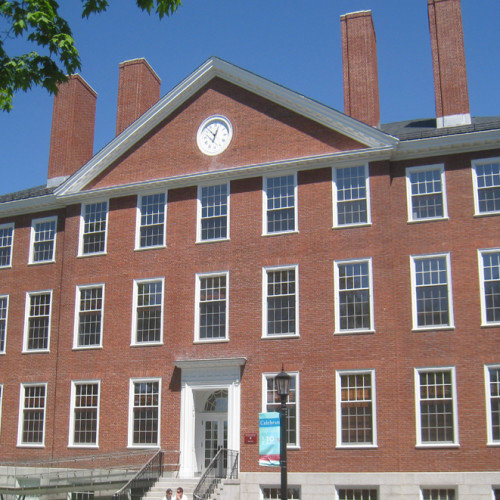

  • Harvard University – Cambridge, MA
  • Harvard University – Cambridge, MA
  • Lighted-Flush-Tower-Clock
Part Number: 4600.
Category: .

Illuminated tower clock available in sizes from 72″ to 96″. 18″ to 60″ see Style 2400. Features include:

          • 4000K (Soft White) LED Backlighting.
          • 3000K (Off White) LED Backlighting.
          • 110-277 volt 50/60HZ power supply.
          • Dimmer Option.
          • Also available with color-changing RGB LEDs.
          • Available with any of our standard dial markings and hands, or ones of your own design.
          • On custom order this tower clock design can be manufactured to fit any size or shape tower opening be it square, rectangular, octagonal, or elliptical.
          • Sizes larger than 96″ are available.

           UL & CTower Clock UL and CUL ListingUL Listed
          Electric Time Company lists its tower clocks under both UL and CUL (Canadian UL) standards.

          99B Control required for operation.

          Additional information available in the documentation tab above.

Documentation



CSI Specifications




107413 Exterior Clocks

PART 1 GENERAL

1.01      Section Includes
A. Tower Clock Components and Remote Control System.

B. Related Sections

– Basic Materials and Methods: All raceways, junction boxes, conduit wire to be

provided by electrical contractor.

– Finish Carpentry: Removable plywood reflector and access panel painted glossy white.

PART 2 PRODUCTS

2.01      CLOCKS

A. Furnish complete clock system consisting of (N) tower clocks and (1) remote control system.

            “N” is the quantity of clocks required.

B. Manufacturer: Electric Time Company, Inc., 97 West Street, Medfield, MA, USA (508)-359-4396/(800)-531-2562 FAX (508)-359-4482 – https://www.electrictime.comsales@electrictime.com

C. Tower Clock Components

Dial: Single sheet (not pieced) tran­sluc­ent mil­ky-white acrylic.

Finishes: Dial markings to have a matte black finish, rings and hands to have a black polyurethane finish.

Hands: As selected by architect.

Dial Markings: As selected by architect

Illumination:Backlit with white LEDs and their associated LED drivers.

Listing: Provide UL 48 listing on clock assembly

Movement: Style MI Design. 24VAC drive motor and electronics. 8 second maximum run time. Alternating hall effect switched closed loop minute impulse operation.  Composite lubrication free bearing. Single source: clock and movement to be manufactured by the same company.

Crystal: No crystal – exposed hands.

Rings: Aluminum flat retaining and angle rings.

Style:   Style 46XX

            “XX” is the size of clock – available standard sizes are 72”, 84”, 96”

D. Provide Type 99B-MI automatic reset control;

– IP65 Enclosure – Indoor & Outdoor Use

– Automatically resets clock after power failures.

– Automatically resets clocks for daylight savings time (if required)

– Precision Quartz Time base 4 minutes per year maximum drift.

– Optional GPS – no drift.

– Built in 100 year daylight savings time calendar.

– 2 Line 16 character backlighted LCD display.

– ETL listed to UL 863.

– Power Failure Event logging.

– Standard MI output – 4 clocks maximum standard

– Standard 24VDC RP output -20 clocks maximum

– Sweep Second hand output

– Hour Strike Capability.

– RS-232 and RS-485 output ports

– 24 VAC hour strike output – configurable pulse output

PART 3 EXECUTION

3.01      Installation

A. Inspect substrates, supporting items and related conditions, to ensure that they are ready to receive each item, prior to commencement of installation.

B. Install each item at locations indicated on drawings, as detailed, and in accordance with manufacturers’ instructions.
