Designing Time®

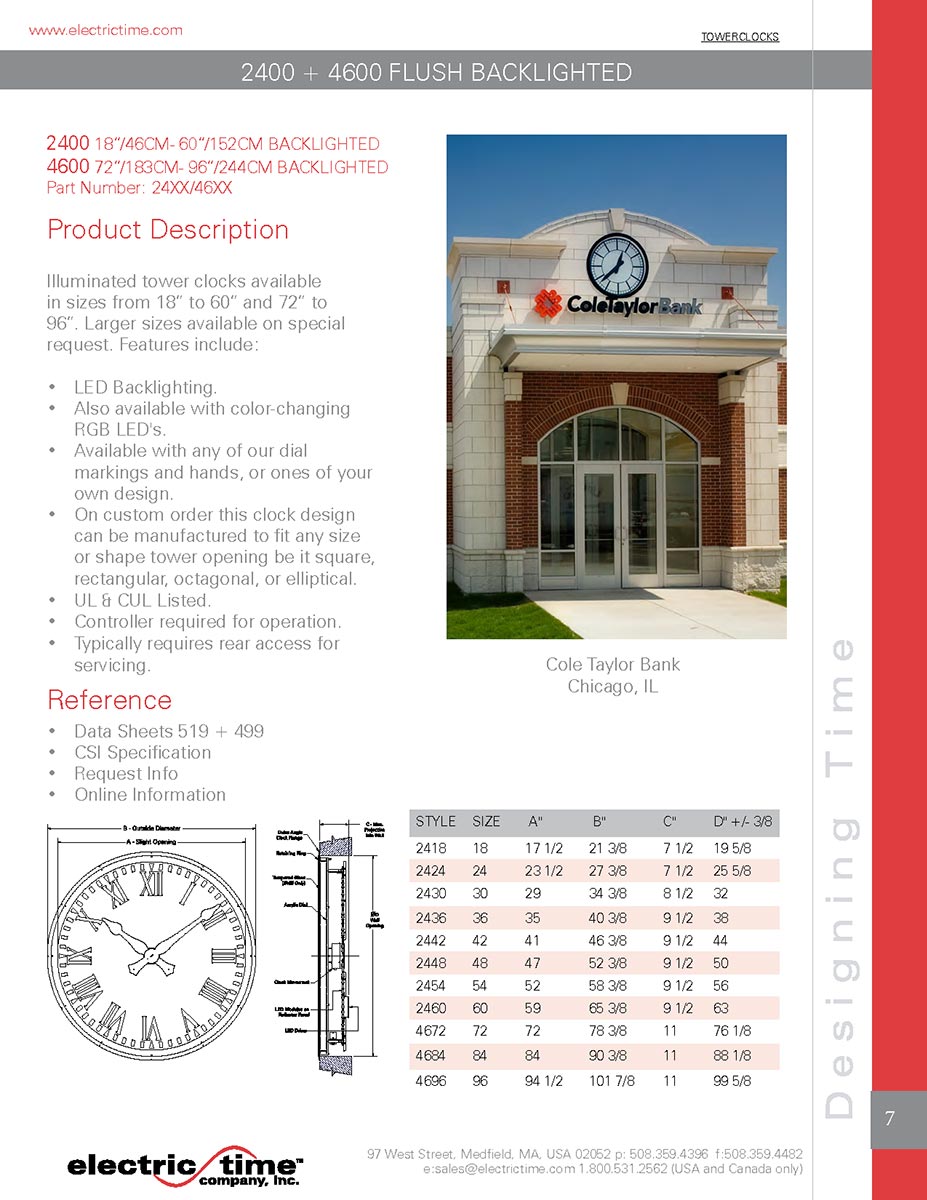

2400 Flush Backlighted

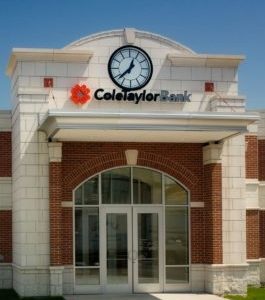

Cole Taylor Bank

18″/46CM- 60″/152CM BACKLIGHTED

Request info.

  • Shippensburg University
  • Parker Station – Parker, CO

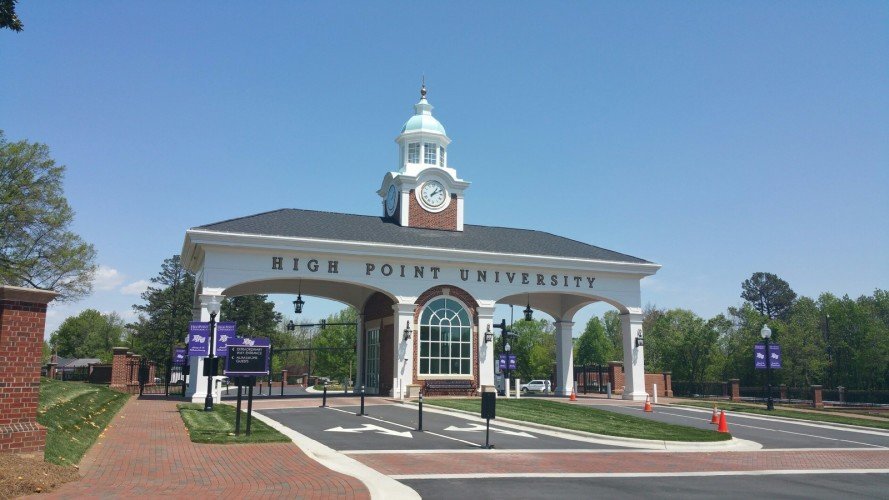

  • High Point University – NC

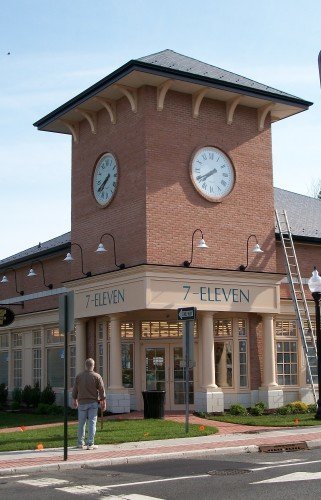

  • 7-Eleven – Montvale, NJ
  • Holland, MI

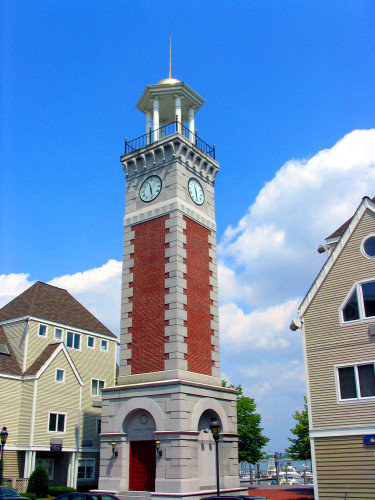

  • Marina Bay – Quincy, MA
  • Baker City, OR

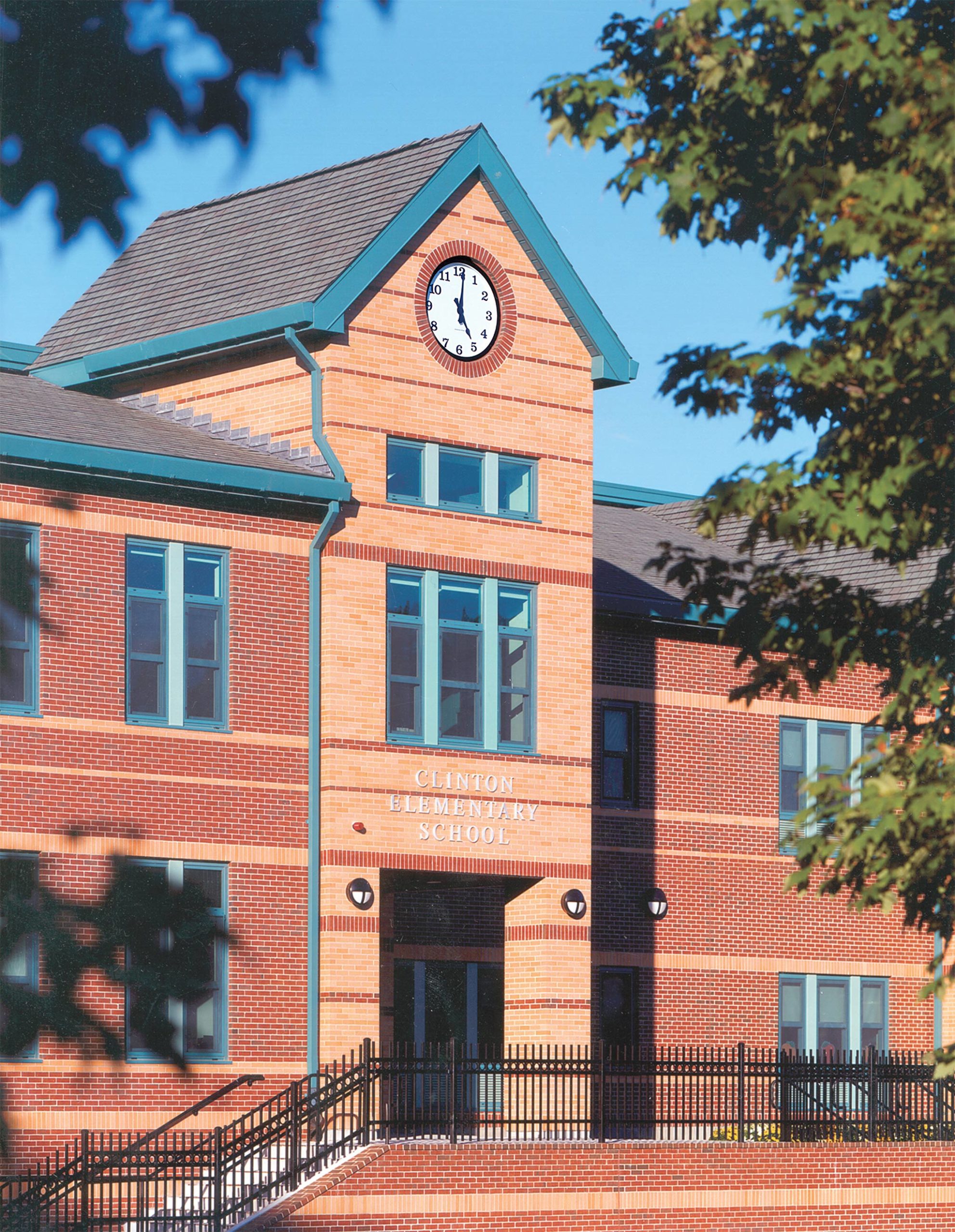

  • Clinton Elementary School – Dedham, MA
  • Roche Bros. – Millis, MA

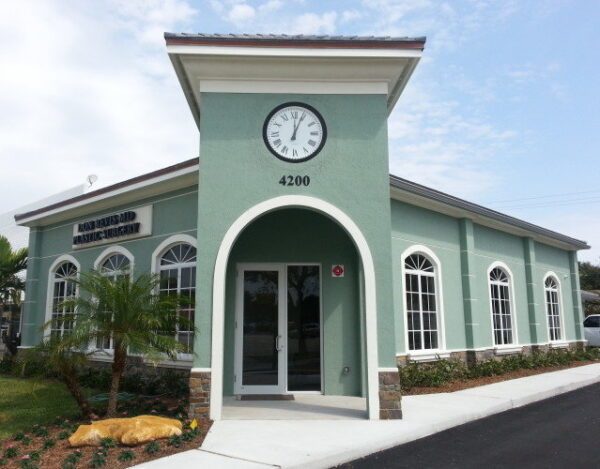

  • Revis Medical Center – Ft. Lauderdale, FL

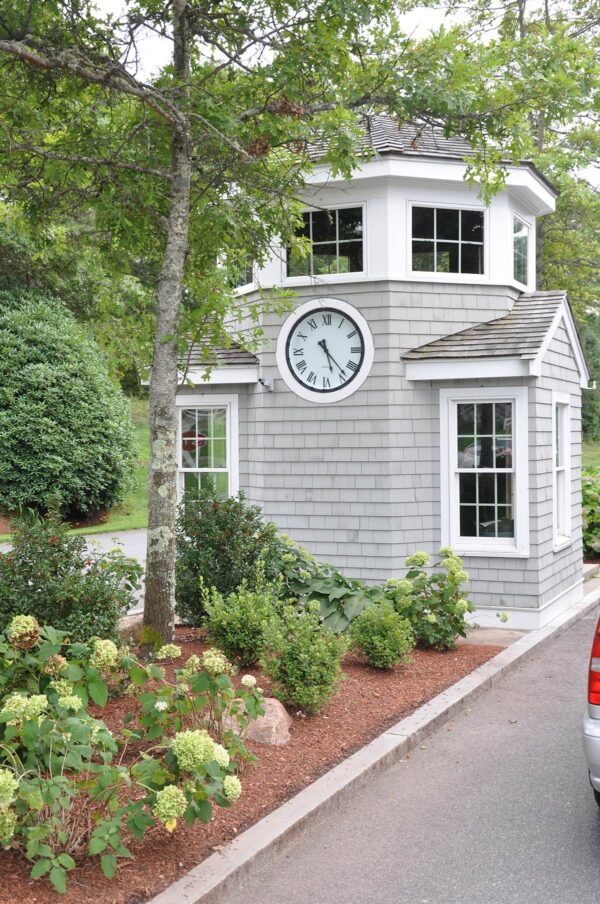

  • Ballymeade Golf & Country Club – Falmouth, MA
  • Hotel – South Carolina

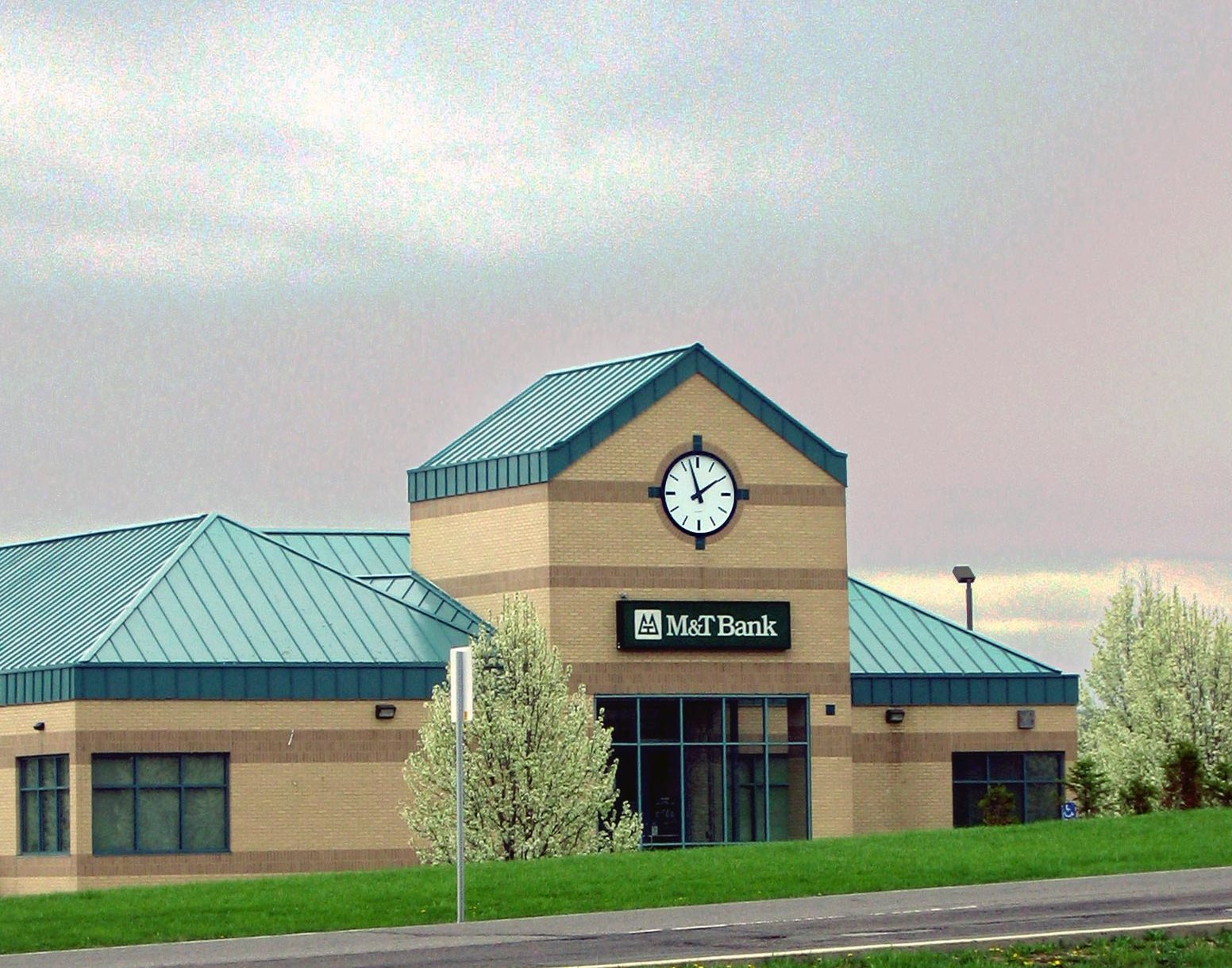

  • M&T Bank – FROSTBURG, MD

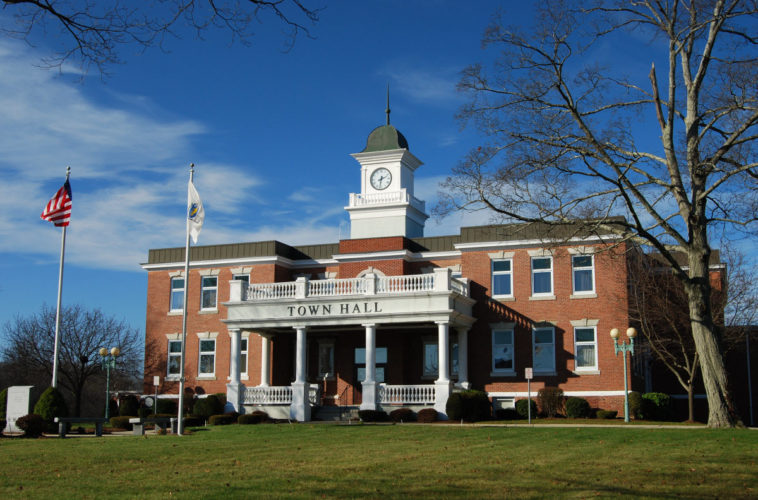

  • Randolph Town Hall – Randolph, MA
Part Number: 2400.
Category: .

Product Description

Illuminated tower clock available in sizes from 18″ to 60″. 72″ to 96″ see Style 4600. Features include:

  • 4100K (Soft White) LED Backlighting with 110-277 volt 50/60HZ power supply.
  • 3200K (Off White) LED backlighting and dimmer options.
  • Available with any of our dial markings and hands, or ones of your own design.

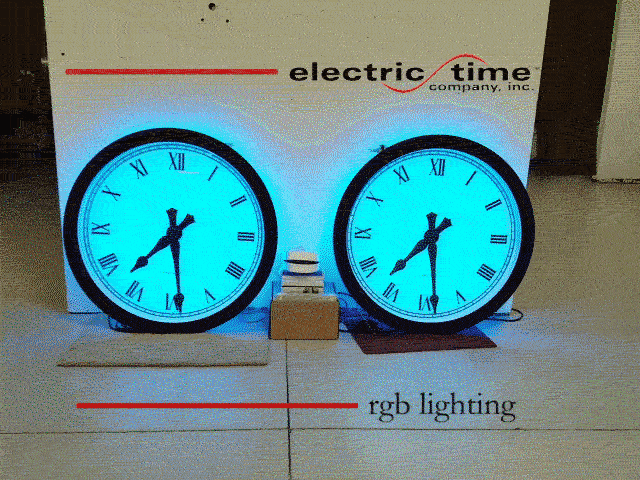

  • Also available with color-changing RGB LEDs

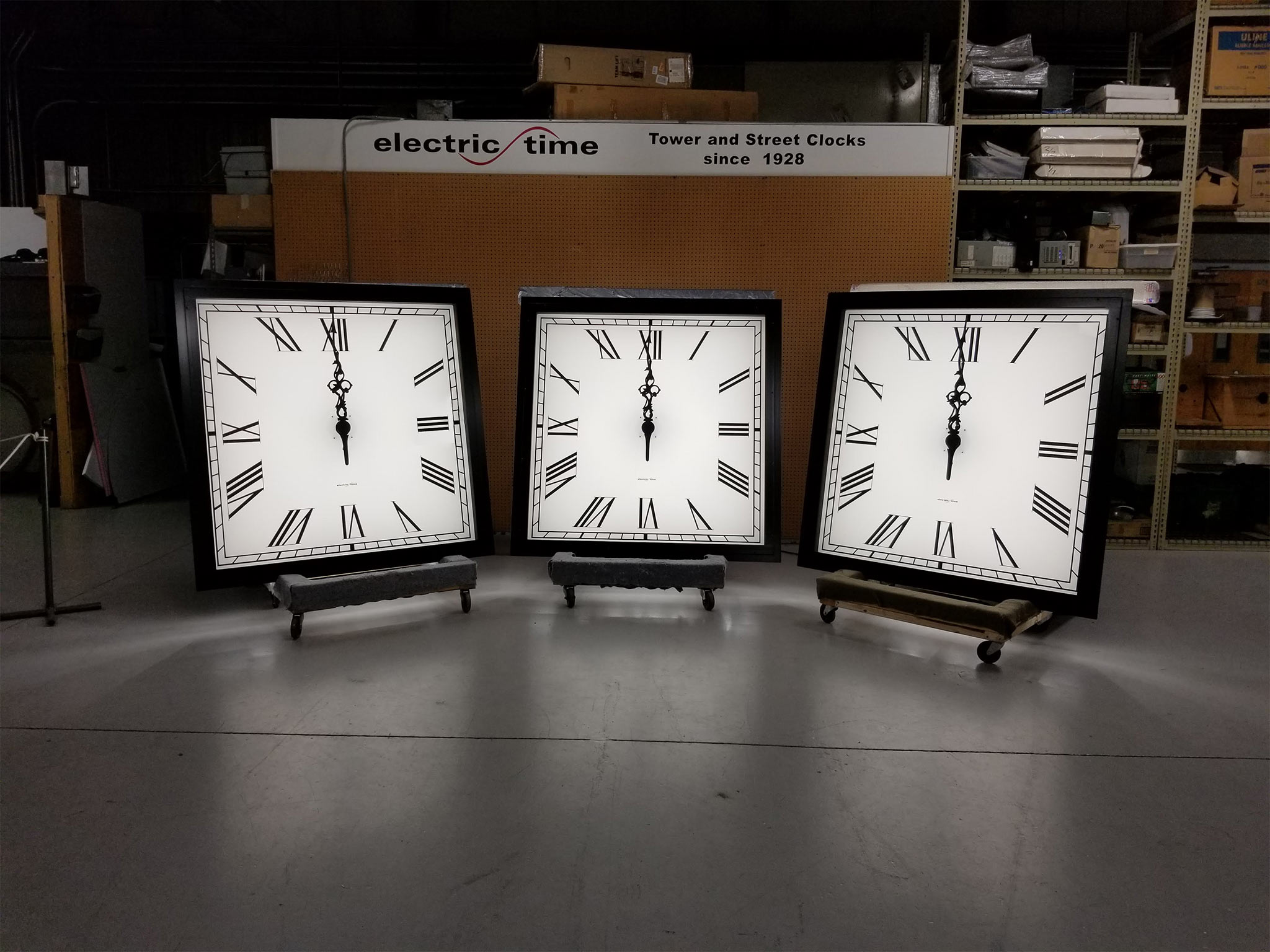

  • On custom order this clock design can be manufactured to fit any size or shape tower opening be it square, rectangular, octagonal, or elliptical.

 UL & CTower Clock UL and CUL ListingUL Listed
Electric Time Company lists its tower clocks under both UL and CUL (Canadian UL) standards.

99B Control required for operation. Sizes 30″ and under available with battery controller.

Additional information available in the documentation tab above.

Documentation



CSI Specifications


PART 1 GENERAL

1.01      Section Includes

A. Tower Clock Components and Remote Control System.

B. Related Sections

– Basic Materials and Methods: All raceways, junction boxes, conduit wire to be provided by electrical contractor.

– Finish Carpentry: Removable plywood reflector and access panel painted white.

PART 2 PRODUCTS

2.01      CLOCKS

A. Furnish complete clock system consisting of (N) tower clocks and (1) remote control system.

“N” is the quantity of clocks required.

B. Manufacturer: Electric Time Company, Inc., 97 West Street, Medfield, MA, USA (508)-359-4396/(800)-531-2562 FAX (508)-359-4482 – http://www.electrictime.comsales@electrictime.com

C. Tower Clock Components

Dial: Single sheet (not pieced) tran­sluc­ent mil­ky-white acrylic.

Finishes: Dial markings to have a matte black finish, rings and hands to have a black polyurethane finish.

Hands: As selected by architect.

Dial Markings: As selected by the architect.

Illumination: Backlit with LEDs and their associated LED drivers.

Crystal: Provide clear, flat tempered glass crystal.

Listing: Provide UL 48 listing on clock assembly

Movement:

Style MI Design. 24VAC drive motor and electronics. 8 second maximum run time. Alternating hall effect switched closed loop minute impulse operation.  Composite lubrication free bearing. Single source: Clock and movement to be manufactured by the same company.

Rings: Aluminum flat retaining and angle rings.

Style: Style 24XX

“XX” is the size of clock – available standard sizes are 18”,24”,30”,36”, 42”, 48”, 54”, 60” (72”, 84” and 96” are style 4600).

D. Provide Type 99B-MI automatic reset control;

– IP65 Enclosure – Indoor & Outdoor Use

– Automatically resets clock after power failures.

– Automatically resets clocks for daylight savings time (if required)

– Precision Quartz Time base 4 minutes per year maximum drift.

– Optional GPS – no drift.

– Built in 100 year daylight savings time calendar.

– 2 Line 16 character backlighted LCD display.

– ETL listed to UL 863.

– Power Failure Event logging.

– Standard MI output – 4 clocks maximum standard

– Standard 24VDC RP output -20 clocks maximum

– Sweep Second hand output

– Hour Strike Capability.

– RS-232 and RS-485 output ports

– 24 VAC hour strike output – configurable pulse output

PART 3 EXECUTION

3.01      Installation

A. Inspect substrates, supporting items and related conditions, to ensure that they are ready to receive each item, prior to commencement of installation.

B. Install each item at locations indicated on drawings, as detailed, and in accordance with manufacturers’ instructions.
