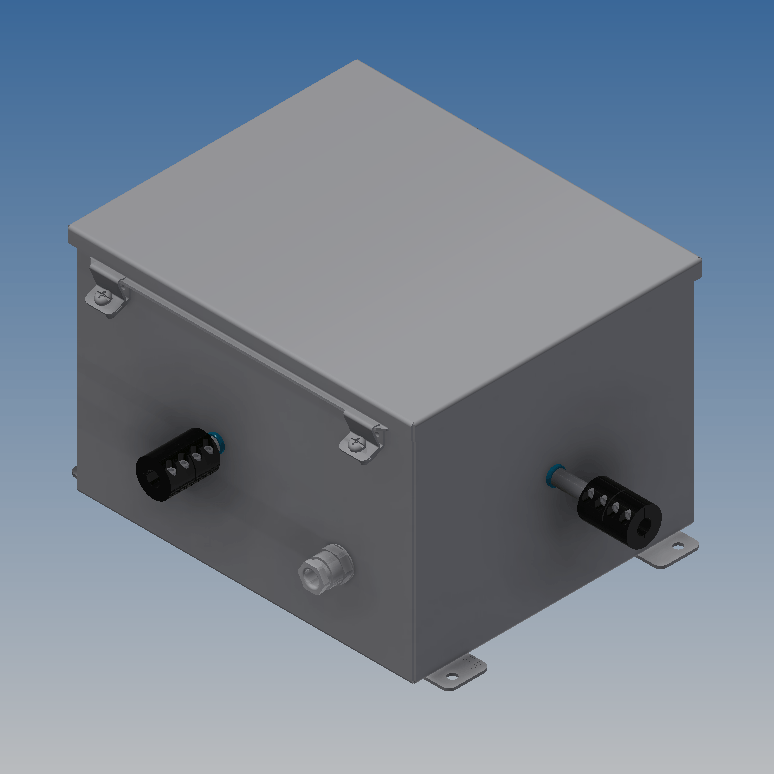

XMI 4 way 72″ (213 cm)

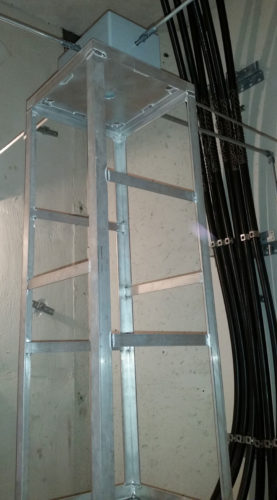

XMI 4 Way Movement Installation Example

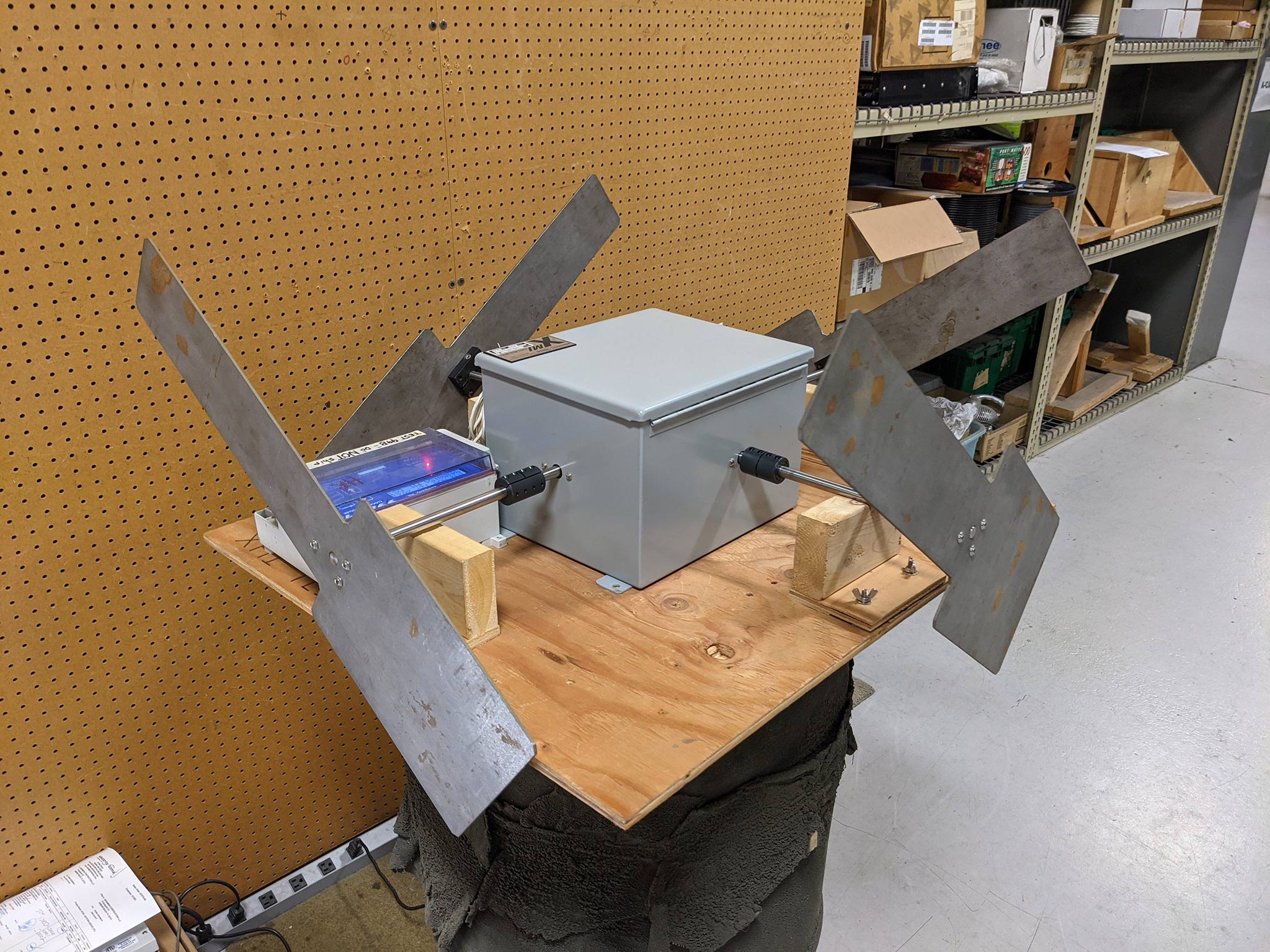

4 way central drive tower clock mechanism on test in our factory.
Tower Clock Dial Mechanism on test
Four Dial Tower Clock Mechanism
XMI 4 Way Movement Installation Example
4 way central drive tower clock mechanism on test in our factory.
Tower Clock Dial Mechanism on test
Four Dial Tower Clock Mechanism

72″ (182 cm) and under 4 Way Impulse Tower Clock Movement

  • XMI 4 Way Movement
  • tower clock mechanism – central drive
  • Tower-Clock-Dial-Mechanism
  • four-dial-tower-clock-mechanism
Part Number: MOVT-XMI.
Category: .

Mechanical Specifications
The XMI is a 4-Way central clock movement designed to drive up to (4) dial gear assemblies from one central location. This movement features robust, reliable, maintenance-free operation and can be used to replace an existing central tower clock movement or to provide a design alternative for new installations.

For 84″ (213cm) and above see MOVT-XXMI
Up to (4) 72″ Dials Unprotected Hands
4 way Tower Clock Movement
Contact factory for specific application
Weatherproof powder coated housing
Clamp Couplings on Output Shafts
1/2″Output Shafts

Electrical Specifications
24VAC – 50/60 HZ – 300 mA – 8W
(8 SEC/MIN RUN TIME)

You can find additional information on other designs on our main tower clock movement overview page.

99B Control required for operation.

Additional information available in the documentation tab above.
