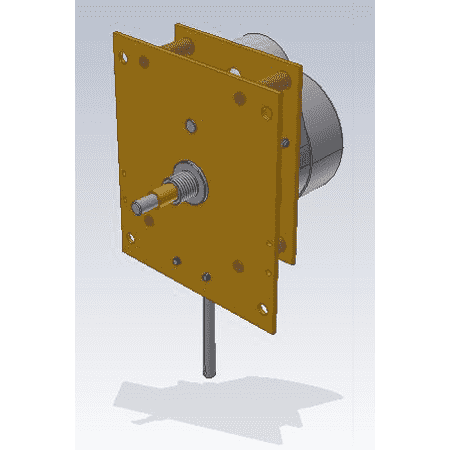

HS 115/230V

MECHANICAL SPECIFICATIONS
UP TO 30" DIAL WITH UNPROTECTED HANDS

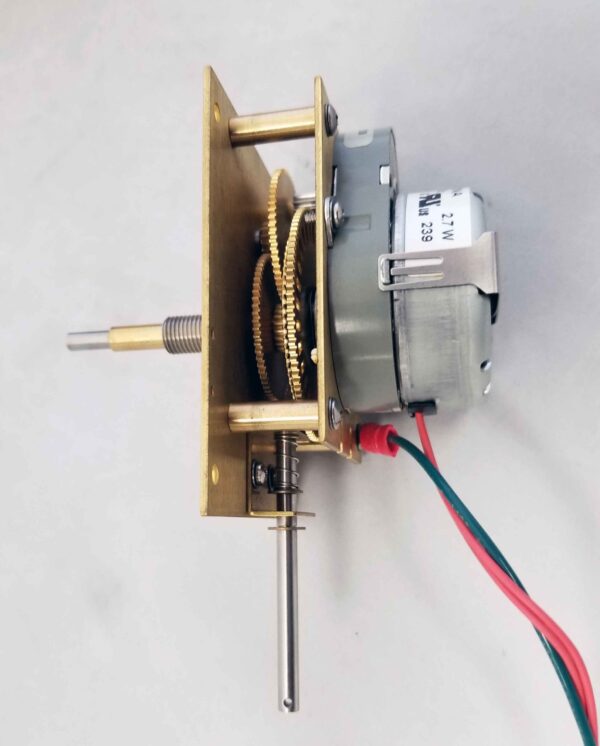

Front Set or Bottom Set

ELECTRICAL SPECIFICATIONS
115VAC - 60 Hz - 25 mA - 1.8W
220VAC - 50 Hz - 11 mA - 2.4W *OPTIONAL

You can find additional information on other designs on our main tower clock movement overview page.

Installation

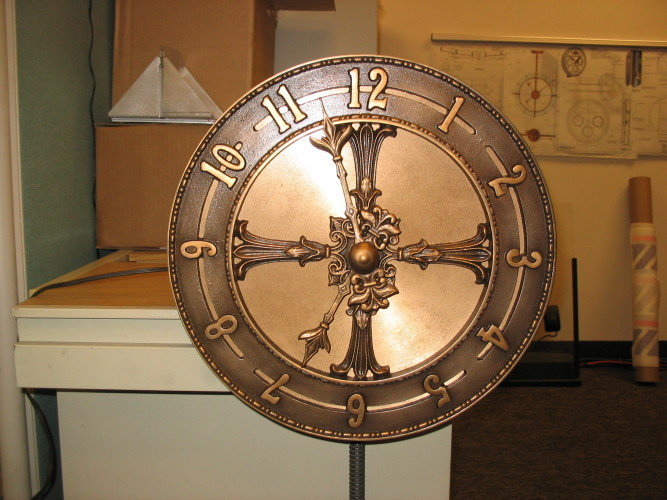

See an installation of this product

Documentation

DS-508 H Type Movements (PDF File)
DS-509A SHBS SHFS Assemblies (PDF File)
Dwg A-8980 - Set Shaft Assemblies (PDF File)
