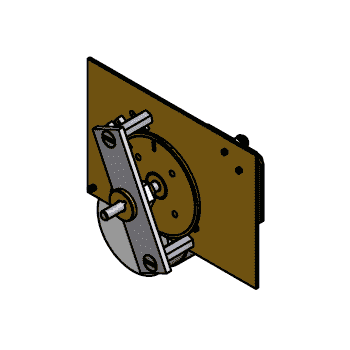

H Type Pointer Movement

Part Number: H POINTER.
Category: .

The HMI-P Movement is a fast setting single style indicator movement. Standard functions include; moon dial, day of the week, day of the month, month, thermometer and barometer.

Mechanical Specifications

Up to 30″ diameter dial with protected hands.

Consult Electric Time Co. for recommended movement and hand mounting procedures

Approximate weight = 1/2 lb

Electrical Specifications

24VDC-50/60Hz Stepper Motor

RS485 Communication between Electric Time Co. 99B-MI Clock Controller and the pointer movement

Up to 16 pointer movements can be connected to a single control.

99B Control required for operation.

Additional information available in the documentation tab above.
