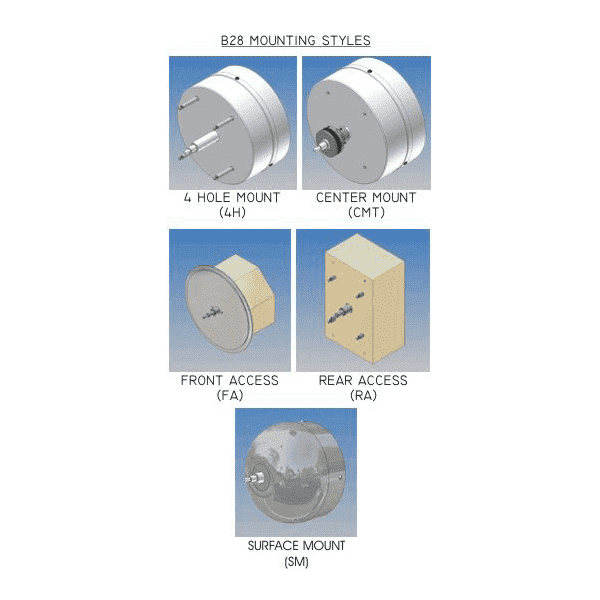

B28 mounting Options

(4H) 4 Hole Mount is typically used on flexible material that is not strong enough to support the movement from the center (CMT).
(CMT) Center Mount used for mounting to translucent or thin materials.
(FA) Front Access used for mounting the clock movement into a solid wall where access is not available from the rear (RA).
(RA) Rear Access used for mounting the clock movement into a solid wall from the rear.
(SM) Surface Mount used when the movement cannot be recess into the wall.


You can find additional information on other designs on our main tower clock movement overview page.

Documentation

(4H) DS-8 4 Hole SB28MI Assemblies (PDF File)
(CMT-G7) DS-482 Center Mount SB28MI Assemblies (PDF File)
(CMT-G8) DS-495 Center Mount SB28MI Assemblies (PDF File)
(FA) DS-9 WB26 Front Mounting (PDF File)
(RA) DS-491 WB10 Rear Mounting (PDF File)
(RA) DS-492 WP-WB10 Weatherproof Rear Mounting (PDF File)
(SM) Dwg A-9131 Surface Mount (PDF File)
