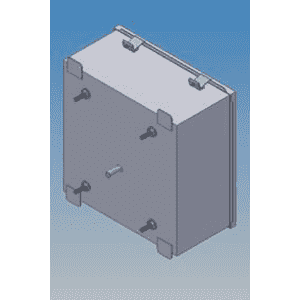

4MI 1RPH Movement

1 RPH Output Mechanical Drive System.

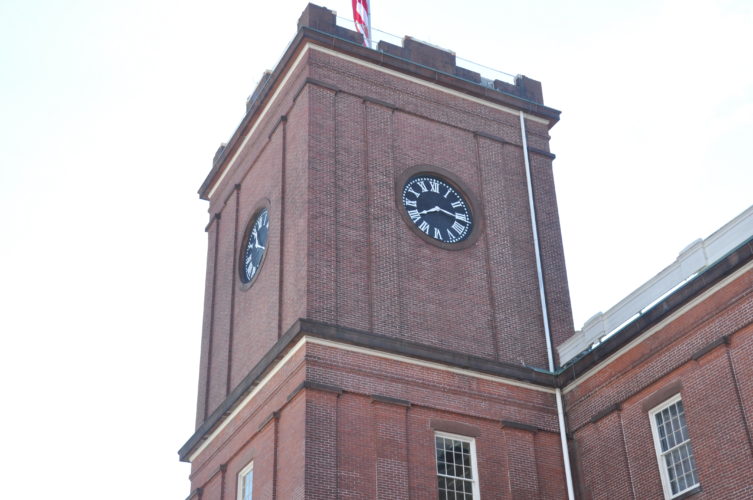

  • Springfield Armory

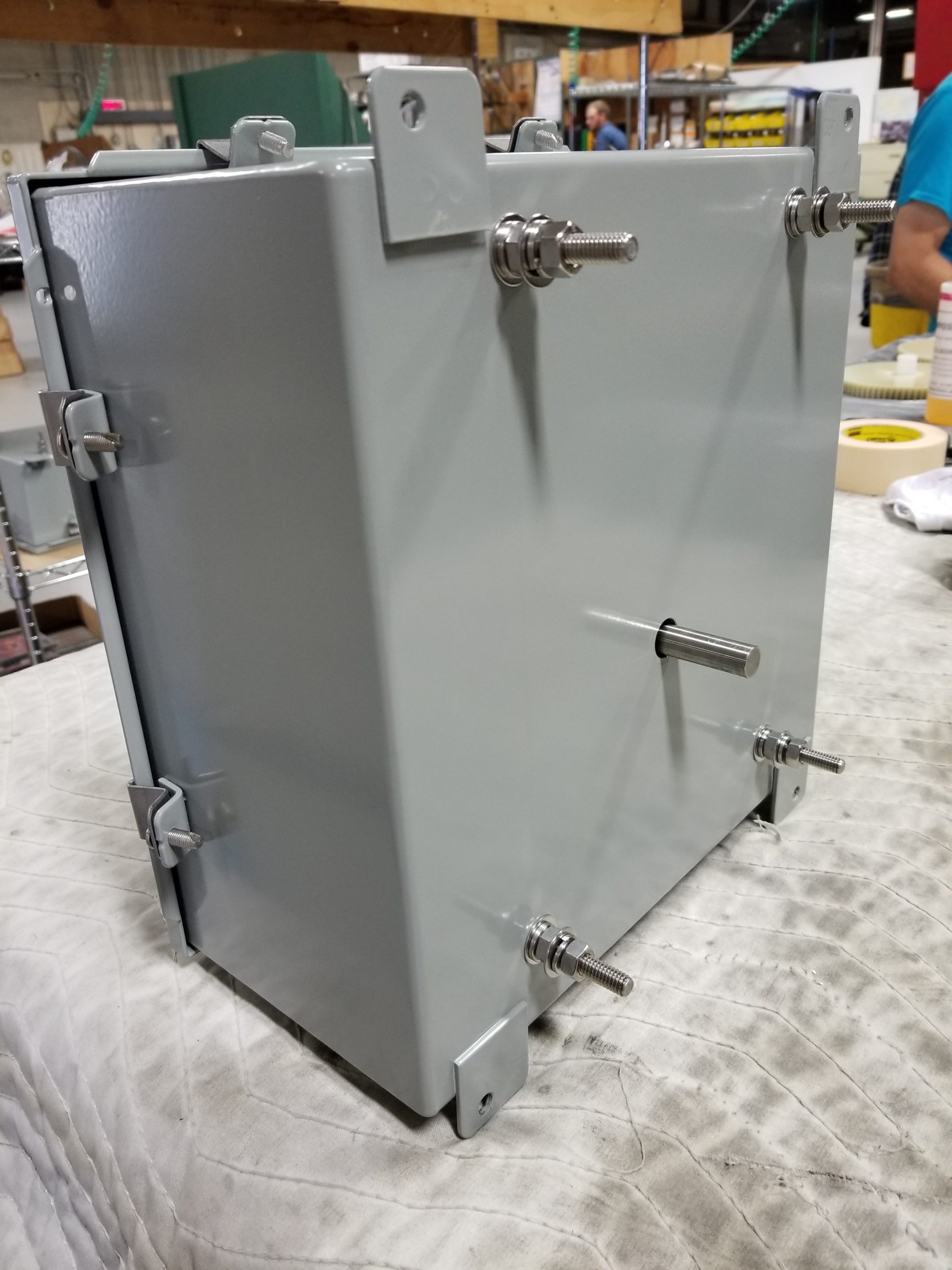

  • Tower Clock Drive 1RPH Front View

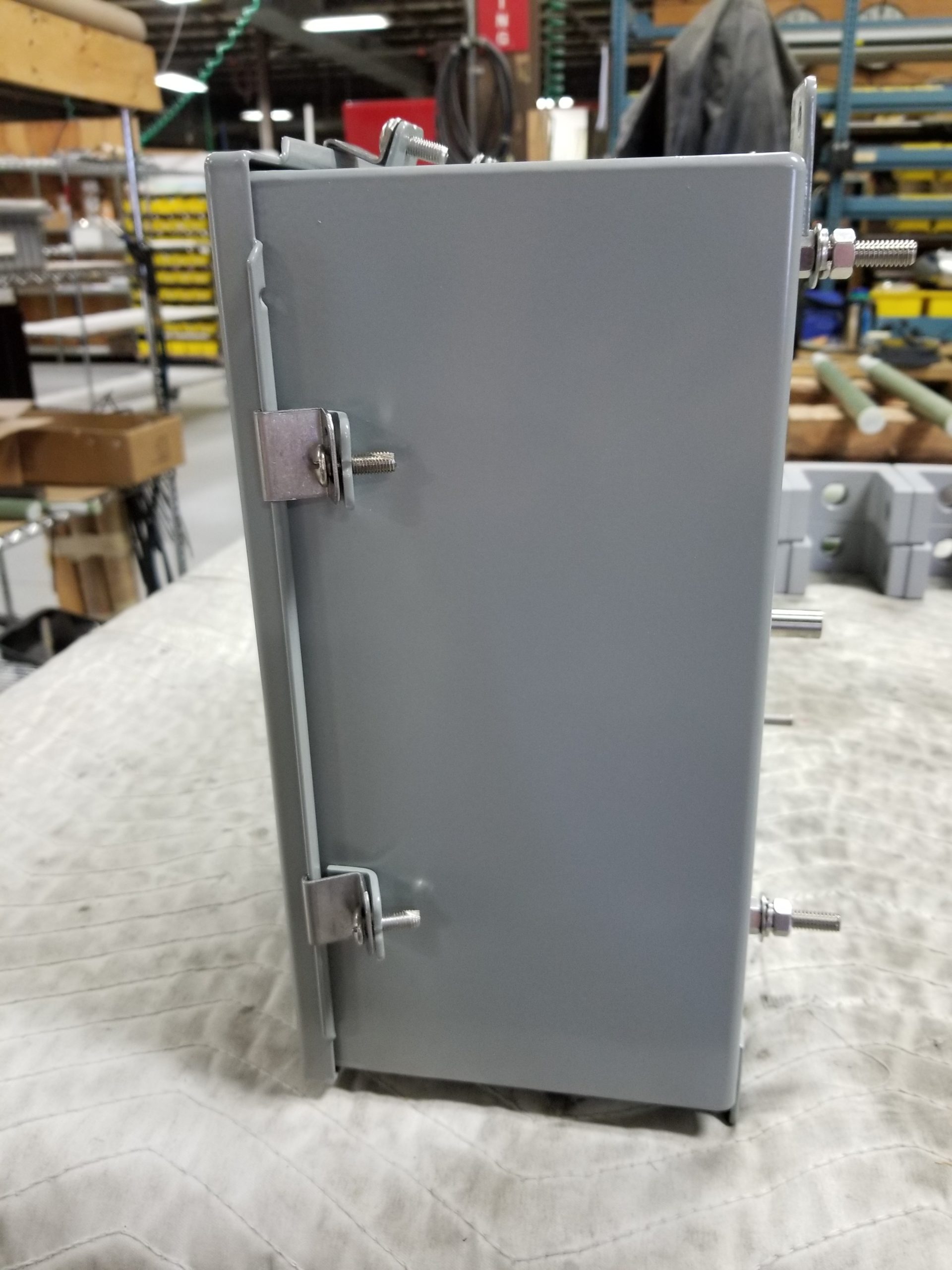

  • Tower Clock Drive 1RPH Side View

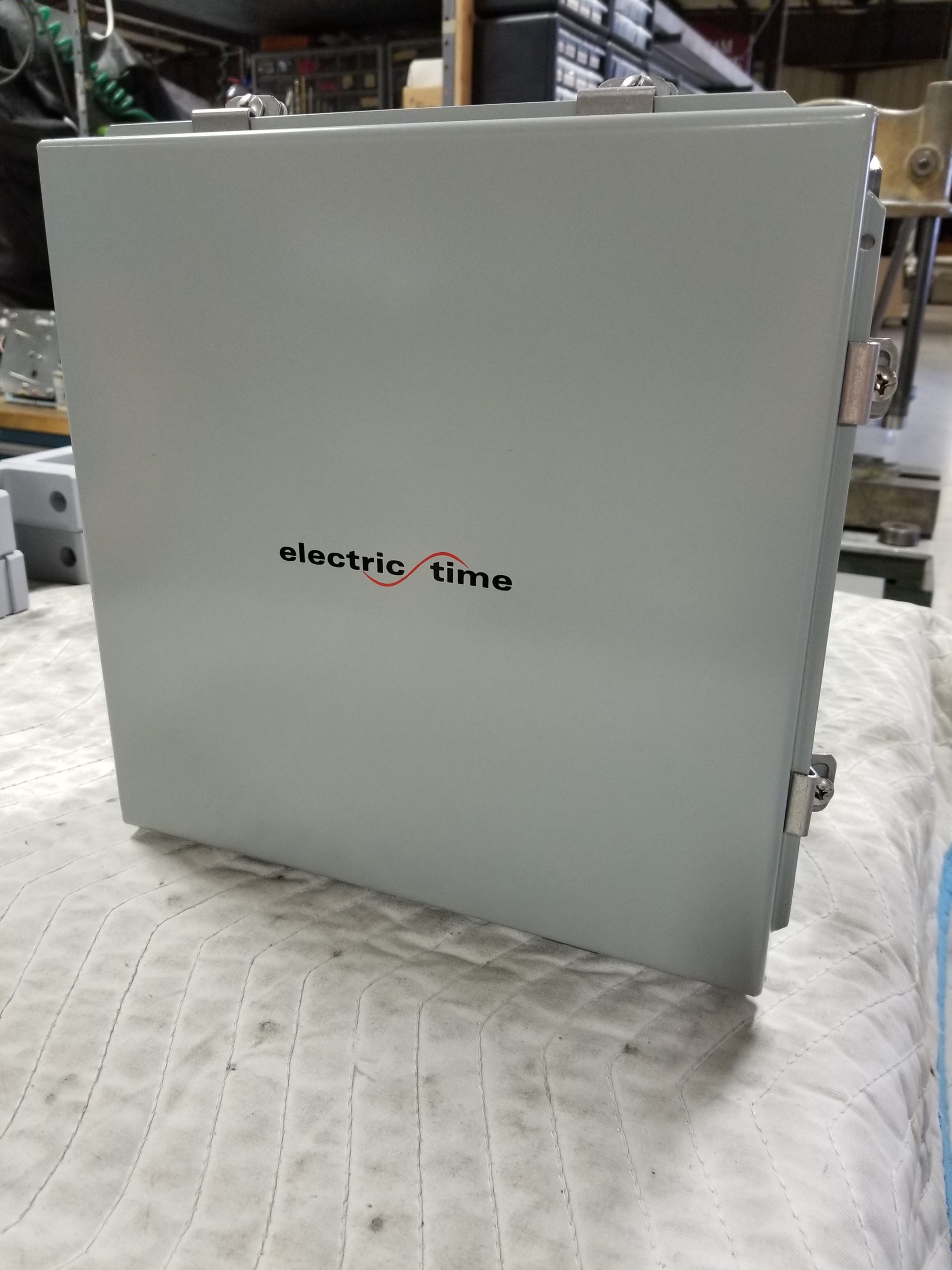

  • Tower Clock Drive 1RPH Rear View
Part Number: MOVT-4MI-DRV.
Category: .

1 RPH Output Mechanical Drive System. Used to electrify existing monumental clock dial gear assemblies. Also used to replace Simplex Model 101-569 Tower Clock Movement & Type 564-2 Tower Clock Movement

Mechanical Specifications
Up to 180″ Dial Unprotected Hands
Contact factory for specific application

Electrical Specifications
24VAC – 50/60 HZ – 300 mA – 7W
(8 SEC/MIN RUN TIME)

You can find additional information on other designs on our main tower clock movement overview page.

99B Control required for operation.

Additional information available in the documentation tab above.
